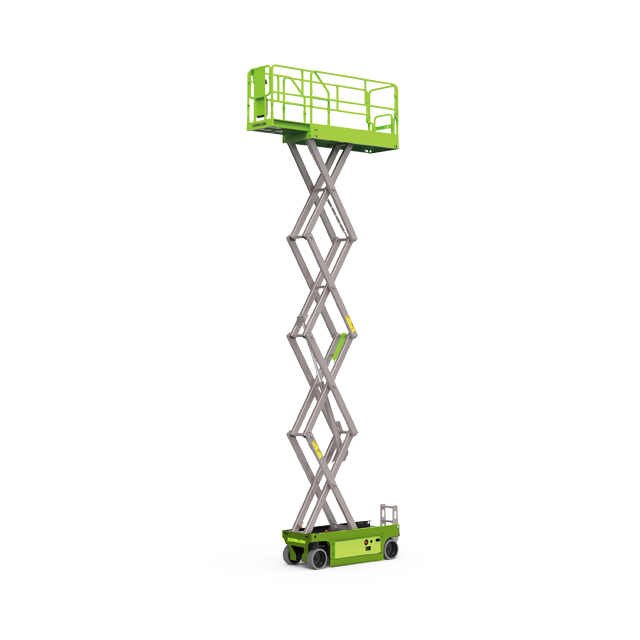

S0812 9.8m Wheel Scissor Lift 460kg Hydraulic Lifting Platform

S0812 wheel scissor lift(also known as hydraulic lifting platform, aerial work platform), working heigth, 9.8m lifting capacity 460kg, CE standard. With extension platform (extendable 0.9m), the working range is effectively expanded.

9.8m wheel scissor lift is widely used in construction sites, hotels, warehouses, airports, stations, docks, stadiums and other buildings for high-altitude maintenance, cleaning, decoration operations, etc.


Availability:
Quantity:
linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

Cost Effectiveness


  • Optimized design ,increases 20% more duty cycles with longer runtime.


  • Precision control for stable operation.


  • Large ground clearance (Pothole Protection retracted), great trafficability.



Easy Maintenance & Service

  • Common components and modular design, easy to maintenance.


  • Bilateral swing-out trays (battery & hydraulich), simple to service.


  • Robust & build to last, reliable and safe.


Dimensions
A1    Max. Working Height9.8 m
A2    Max. Platform Height7.8 m
B       Overall Length (Stowed)2.47 m
C       Overall Width1.20 m
D       Overall Height (Guardrails unfolded)2.31 m
Overall Height (Guardrails folded)1.80 m
E        Max Horizontal Reach (Extension)0.90 m
F        Platform Length (Stowed)2.25 m
G       Platform Width1.16 m
H       Wheelbase1.88 m
I         Ground Clearance (Stowed)0.1 m
J        Ground Clearance (Lifting)0.02 m
Weight
Overall Weight2310kg
Performance
Max. Platform Occupancy (In door)2
Max. Platform Occupancy (Out door)1
Lift Capacity460 kg
Lift Capacity (Extension deck)120 kg
Driving HeightFull height
Driving speed (Stowed)0-3.0 km/h
Driving speed (Raised)0-0.8 km/h
Gradealility0.3
Turning Radius (Inside)0
Turning Radius (Outside)2.3 m
Maximum Working Inclination Angle2°/3°
Rise/Lower Speed30/30 sec.
Track Tyre381x127 mm
Power
Battery4x6V/240Ah
Charger90-240V/30A
