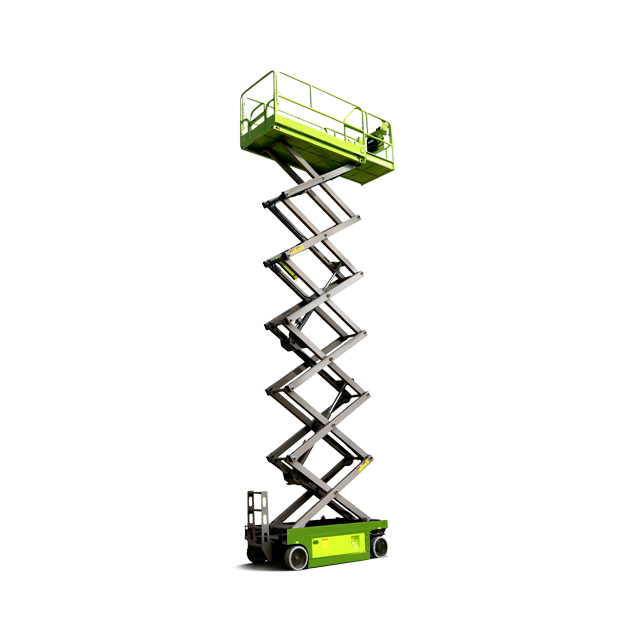

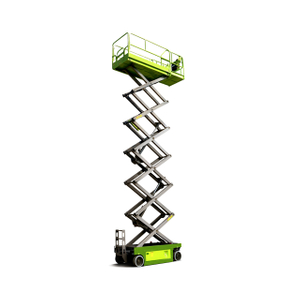

S1212E Electric Scissor Lift Working Height 13.8m

High Performance

Lithium-ion batteries features long service life that the running time increases b30%, and could apply to -20'℃ cold working conditions

Cost Effectiveness

Battery Management System (BMS) + Machine control system provide dualprotection

Inquire

Related News

content is empty!

Dimensions
A1 Max. Working Height	13.8 m
A2 Max. Platform Height	11.8 m
B Overall Length (Stowed)	2.47 m
C Overall Width	1.20 m
D Overall Height (Guardrails unfolded)	2.56 m
Overall Height (Guardrails folded)	2.04 m
E Max Horizontal Reach (Extension)	0.90 m
F Platform Length (Stowed)	2.25 m
G Platform Width	1.16 m
H Wheelbase	1.88 m
I Ground Clearance (Stowed)	0.10 m
J Ground Clearance (Lifting)	0.02 m
Weight
Overall Weight	2900 kg
Performance
Max. Platform Occupancy (In door)	2
Max. Platform Occupancy (Out door)	1
Lift Capacity	320 kg
Lift Capacity (Extension deck)	120 kg
Driving Height	Full height
Driving speed (Stowed)	0-3.0 km/h
Driving speed (Raised)	0-0.8 km/h
Gradealility	0.25
Turning Radius (Inside)	0
Turning Radius (Outside)	2.3 m
Maximum Working Inclination Angle	1.5°/3°
Rise/Lower Speed	70/58 sec.
Track Tyre	381x127 mm
Power
Battery	4x6V/240Ah
Charger	90-240V/30A
