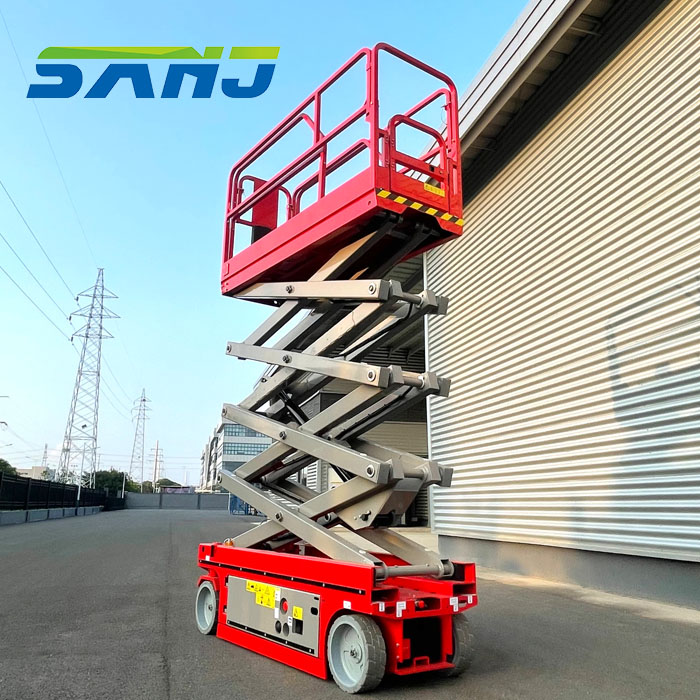

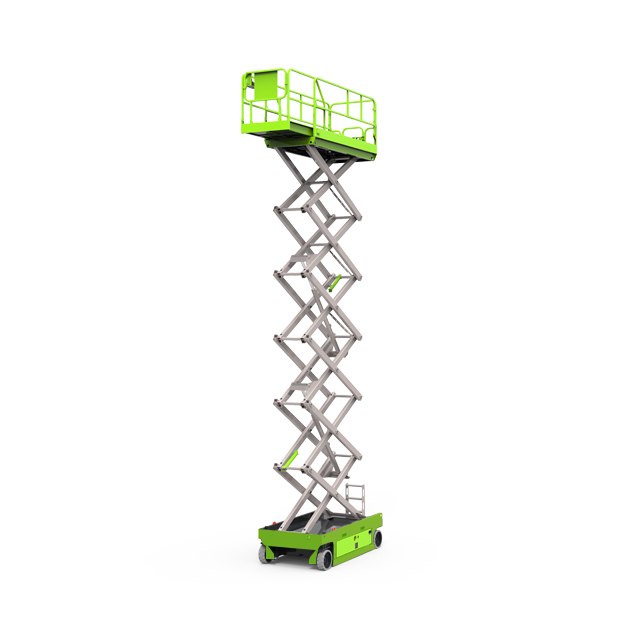

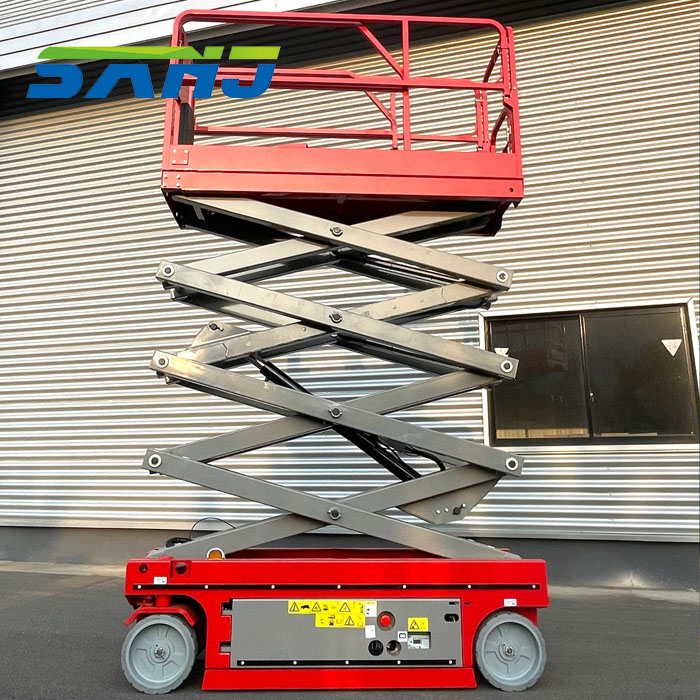

S1414E Electric Wheel Scissor Lift 15.8m Aerial Work Platform

The S1414E electric wheel scissor lift (also known as an aerial work platform) has a working height of 15.8m and a load capacity of 320kg. The platform is 2.61m long and can be extended 90cm to expand the working range.

The S1414E 15.8m wheel aerial work platform is electrically driven, with zero emissions and low noise levels. Wheel design, flexible movement, easy to move in narrow areas.

The 15.8m electric wheel scissor lift is suitable for indoor and outdoor medium-height work applications such as factory equipment maintenance, venue ceiling installation, high-rise building exterior wall maintenance, and warehouse high-bay storage. It is a cost-effective electric aerial work platform.

Availability:
Quantity:
linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

High Performance


  • AC system offers higher working efficiency


  • IP67 rated waterproof protection on AC wheel motors for longer lifespan


  • Lithium-ion batteries features long service life that the running time increases b30%, and could apply to -20'℃ cold working conditions


Cost Effectiveness
  • Knuckles lubrication-free and maintenance-free



  • AC motor full lifecycle maintenance-free



  • Swing-out tray easy to service



  • Intelligent Connectivity



Battery Management System (BMS) + Machine control system provide dualprotection


Dimensions
A1    Max. Working Height15.8 m
A2    Max. Platform Height13.8 m
B       Overall Length (Stowed)2.83 m
C       Overall Width1.42 m
D       Overall Height (Guardrails unfolded)2.78 m
Overall Height (Guardrails folded)2.27m
E        Max Horizontal Reach (Extension)0.90 m
F        Platform Length (Stowed)2.61 m
G       Platform Width1.12 m
H       Wheelbase1.88 m
I         Ground Clearance (Stowed)0.10 m
J        Ground Clearance (Lifting)0.02 m
Weight
Overall Weight3580
Performance
Max. Platform Occupancy (In door)2
Max. Platform Occupancy (Out door)1
Lift Capacity320 kg
Lift Capacity (Extension deck)120 kg
Driving HeightFull height
Driving speed (Stowed)0-3.0 km/h
Driving speed (Raised)0-0.8 km/h
Gradealility0.2
Turning Radius (Inside)0
Turning Radius (Outside)2.7 m
Maximum Working Inclination Angle1.5°/3°
Rise/Lower Speed70/65 sec.
Track Tyre381x127 mm
Power
Battery4x12V/157Ah
Charger90-240V/30A
