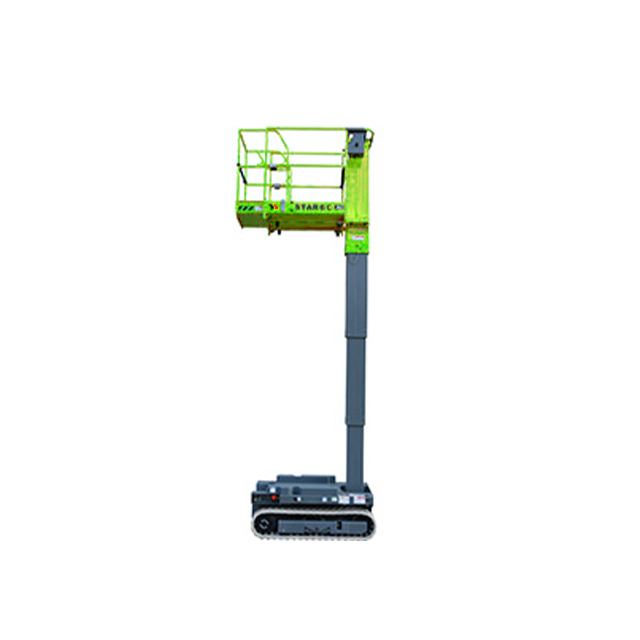

VM0407C Crawler Vertical Mast Lift 5.6m Working Height

The VM0407C crawler vertical mast lift has a working height of 5.6m and a load capacity of 227kg. Equipped with a rubber track chassis, it is suitable for operation in complex road conditions. The product meets CE certification.
The 5.6m crawler vertical mast lift features automatic walking, turning, and lifting functions.
It is widely used for routine maintenance in supermarkets, warehouses, workshops, stadiums, and other similar locations.
Availability:
Quantity:
linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

Key Features


  • Agile, robust, easy to use and maintain, crawler vertical mast lifts are intended for use in multiple applications.


  • Equipped with rubber tracks, the Crawler enables operators to cross any terrain to access their work area.


  • The Crawler tracks distribute the weight over a large surface area. The pressure on the ground is reduced, enabling the machine to crawl over sensitive floors: marble, tile, carpet, etc.

Dimensions
Max. Working Height5.6 m
A   Max. Platform Height3.6 m
B   Overall Length (Stowed)1.44 m
C   Overall Width0.85 m
D   Overall Height (Guardrails unfolded)1.97 m
Platform Length1.35 m
Platform Width0.74 m
Wheelbase1.11 m
Ground Clearance0.1 m
Weight
Overall Weight915kg
Performance
Max. Platform Occupancy2
Lift Capacity227 kg
Lift Capacity (Extension deck)115 kg
Drive speed (Stowed)0-2.0 km/h
Drive speed (Raised)No driving when lifting
Gradeability (Stowed)0.25
Turning Radius (Inside)0
Turning Radius (Outside)0
Maximum Working Inclination Angle1.5°/2°
Rise/Lower Speed28-32/28-32sec
ControlsProportional control
DriveDual rear wheel
BrakeDual rear wheel, electric
Crawler size150×72 mm
Power
Battery2x12V DC(115Ah)
Charger100-240V 15A


0407C+0507C.2
