Key Features
Agile, robust, easy to use and maintain, crawler vertical mast lifts are intended for use in multiple applications.
Equipped with rubber tracks, the Crawler enables operators to cross any terrain to access their work area.
The Crawler tracks distribute the weight over a large surface area. The pressure on the ground is reduced, enabling the machine to crawl over sensitive floors: marble, tile, carpet, etc.
Key Features
Agile, robust, easy to use and maintain, crawler vertical mast lifts are intended for use in multiple applications.
Equipped with rubber tracks, the Crawler enables operators to cross any terrain to access their work area.
The Crawler tracks distribute the weight over a large surface area. The pressure on the ground is reduced, enabling the machine to crawl over sensitive floors: marble, tile, carpet, etc.

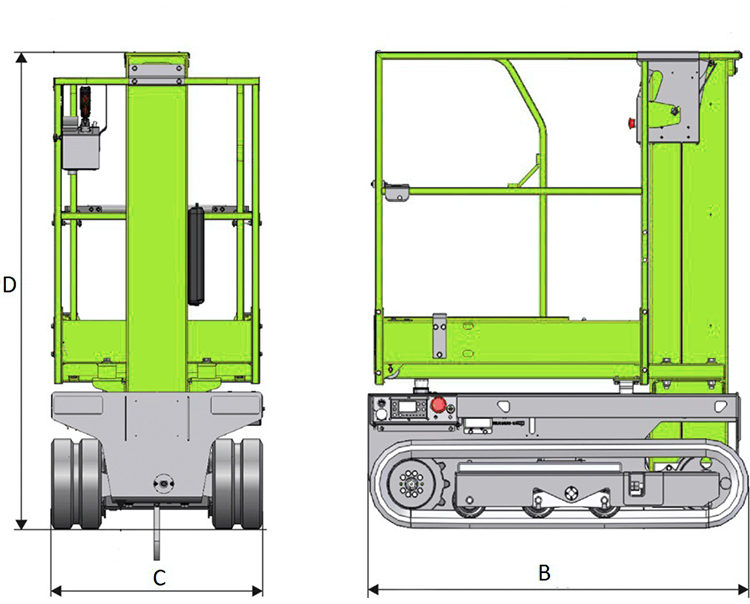

| Dimensions | |
| Max. Working Height | 6.8 m |
| A Max. Platform Height | 4.8 m |
| B Overall Length (Stowed) | 1.44 m |
| C Overall Width | 0.85 m |
| D Overall Height (Guardrails unfolded) | 1.97 m |
| Platform Length | 1.35 m |
| Platform Width | 0.74 m |
| Wheelbase | 1.11 m |
| Ground Clearance | 0.1 m |
| Weight | |
| Overall Weight | 1150kg |
| Performance | |
| Max. Platform Occupancy | 2 |
| Lift Capacity | 227 kg |
| Lift Capacity (Extension deck) | 115 kg |
| Drive speed (Stowed) | 0-2.0 km/h |
| Drive speed (Raised) | No driving when lifting |
| Gradeability (Stowed) | 0.25 |
| Turning Radius (Inside) | 0 |
| Turning Radius (Outside) | 0 |
| Maximum Working Inclination Angle | 1.5°/2° |
| Rise/Lower Speed | 38-42/40-44sec |
| Controls | Proportional control |
| Drive | Dual rear wheel |
| Brake | Dual rear wheel, electric |
| Crawler size | 150×72 mm |
| Power | |
| Battery | 2x12V DC(115Ah) |
| Charger | 100-240V 15A |
| Dimensions | |
| Max. Working Height | 6.8 m |
| A Max. Platform Height | 4.8 m |
| B Overall Length (Stowed) | 1.44 m |
| C Overall Width | 0.85 m |
| D Overall Height (Guardrails unfolded) | 1.97 m |
| Platform Length | 1.35 m |
| Platform Width | 0.74 m |
| Wheelbase | 1.11 m |
| Ground Clearance | 0.1 m |
| Weight | |
| Overall Weight | 1150kg |
| Performance | |
| Max. Platform Occupancy | 2 |
| Lift Capacity | 227 kg |
| Lift Capacity (Extension deck) | 115 kg |
| Drive speed (Stowed) | 0-2.0 km/h |
| Drive speed (Raised) | No driving when lifting |
| Gradeability (Stowed) | 0.25 |
| Turning Radius (Inside) | 0 |
| Turning Radius (Outside) | 0 |
| Maximum Working Inclination Angle | 1.5°/2° |
| Rise/Lower Speed | 38-42/40-44sec |
| Controls | Proportional control |
| Drive | Dual rear wheel |
| Brake | Dual rear wheel, electric |
| Crawler size | 150×72 mm |
| Power | |
| Battery | 2x12V DC(115Ah) |
| Charger | 100-240V 15A |
