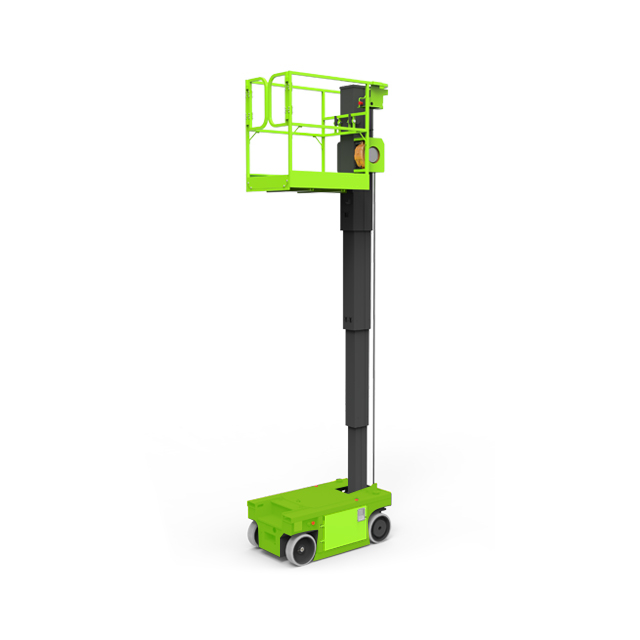

VM0407E 5.6m Electric Wheel Vertical Mast Lift 227kg Lift Capacity

The VM0407E electric wheel vertical mast lift has a working height of 5.6m, a lifting load of 227kg, and can support two operators simultaneously. It has a small footprint and is equipped with a 24V AGM maintenance-free battery, operating in an environmentally friendly and noiseless manner. Meets CE standards.
The 5.6m electric vertical mast lift features a lightweight and compact design, high mobility, and can navigate narrow aisles and elevators, making it ideal for warehouses, retail stores, and manufacturing plants. Non-marking tires exert little pressure on the ground and will not damage the ground.
Availability:
Quantity:
Inquire Add to Basket

linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

Key Features


  • Agile, robust, easy to use and maintain, electric wheel vertical mast lifts are intended for use in multiple applications.

  • Equipped with AC motors that combine proportionality and torque.

  • Narrow frames make the machine extremely easy to operate.

  • The VM0407E electric wheel vertical mast lift is compact in size and has a small turning radius, making it flexible for use in confined spaces.

  • Intelligent diagnostic system can quickly troubleshoot problems.


Dimensions
Max. Working Height5.6 m
A   Max. Platform Height3.6 m
B   Overall Length (Stowed)1.53 m
C   Overall Width0.76 m
D   Overall Height (Guardrails unfolded)1.75 m
Platform Length1.35 m
Platform Width0.74 m
Wheelbase1.06 m
Ground Clearance0.05 m
Weight
Overall Weight800 kg
Performance
Max. Platform Occupancy2
Lift Capacity227 kg
Lift Capacity (Extension deck)115 kg
Drive speed (Stowed)0-3.2 km/h
Drive speed (Raised)0-0.5 km/h
Gradeability (Stowed)0.25
Turning Radius (Inside)0
Turning Radius (Outside)1.55 m
Maximum Working Inclination Angle1.5°/3°
Rise/Lower Speed28-32/28-32sec
ControlsProportional control
DriveDual rear wheel
BrakeDual rear wheel, electric
Tires size305×100 mm
Power
Battery2x12V DC(115Ah)
Charger100-240V15A


0407+0507--1.20407+0507--2.20407+0507--3.2

VM0407E Electric Wheel Vertical Mast Lift 5.6m Electric Wheel Vertical Mast Lift
