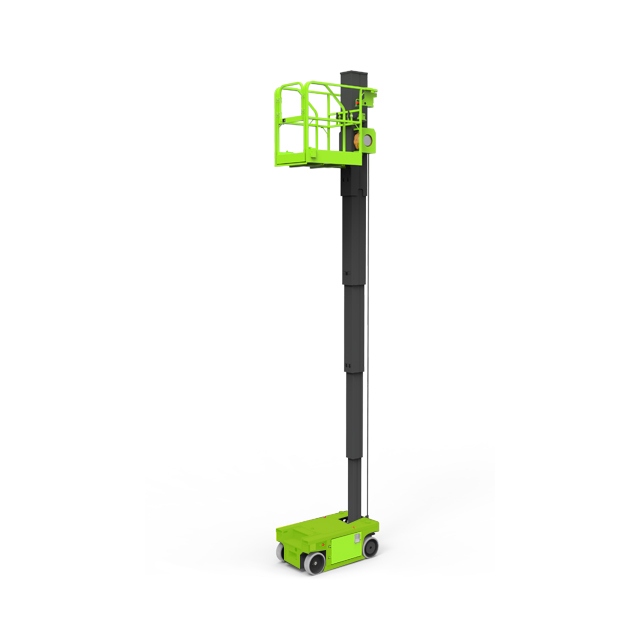

VM0507E Electric Wheel Vertical Mast Lift 6.8m Working Height

The VM0507E electric wheel vertical mast lift has working height of 6.8m, load capacity of 227kg, meets CE certification, and is of reliable quality. It features automatic walking, turning, and lifting functions.
6.8m electric wheel vertical mast lift is widely used for routine maintenance or other purposes in supermarkets, warehouses, workshops, stadiums, and other similar locations.
Availability:
Quantity:
Inquire Add to Basket

linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

Key Features


  • Agile, robust, easy to use and maintain, electric wheel vertical mast lifts are intended for use in multiple applications.



  • Equipped with AC motors that combine proportionality and torque.



  • Narrow frames make the machine extremely easy to operate.

Dimensions
Max. Working Height6.8 m

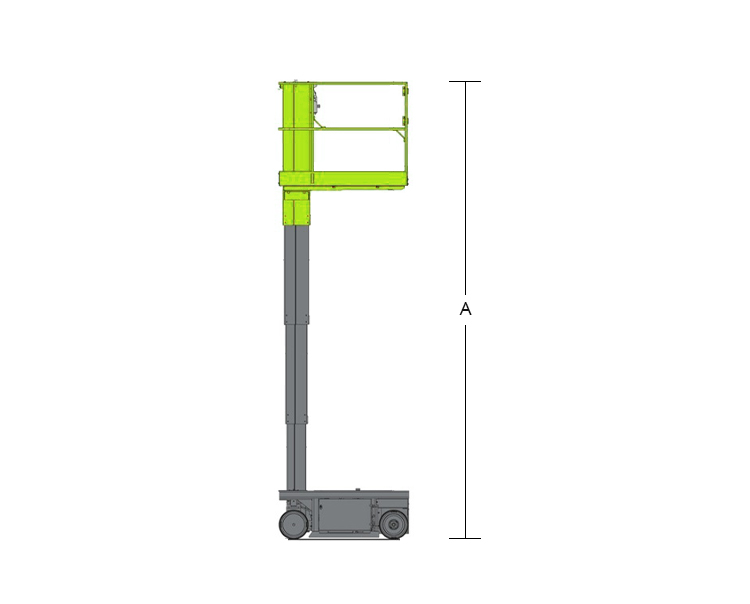

A   Max. Platform Height4.8 m

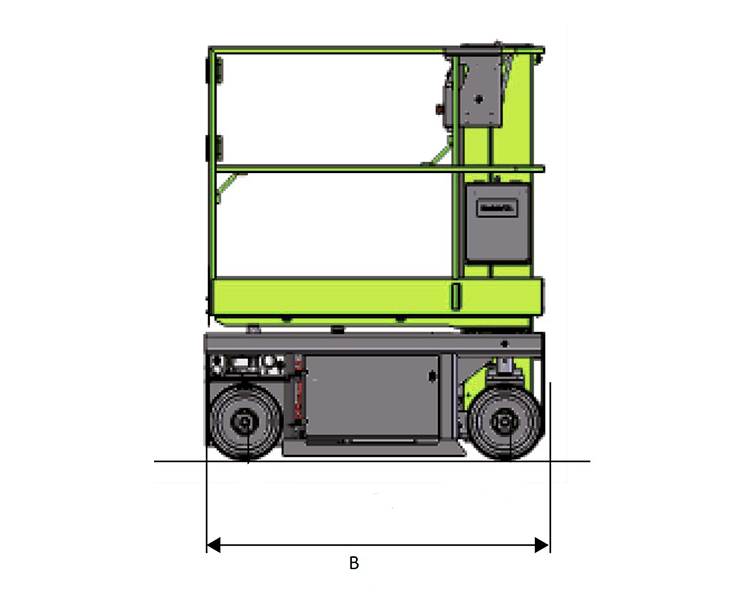

B   Overall Length (Stowed)1.53 m

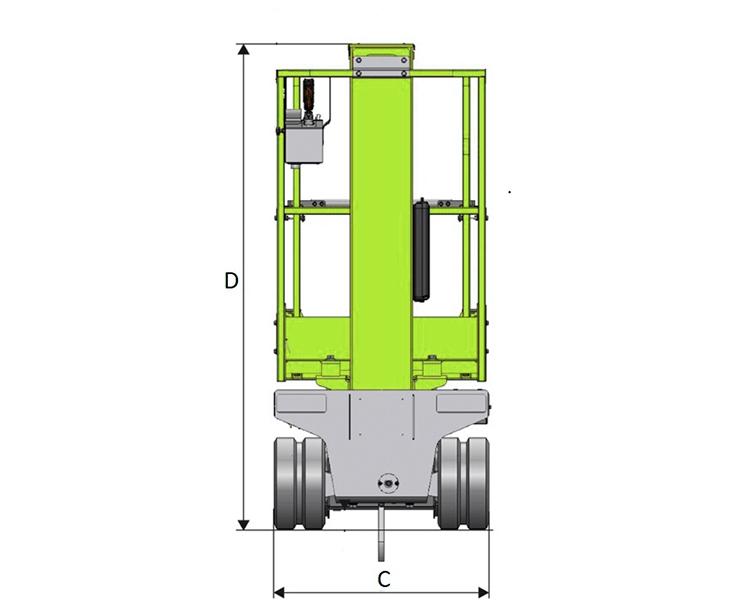

C   Overall Width0.76 m
D   Overall Height (Guardrails unfolded)1.98 m
Platform Length1.35 m
Platform Width0.74 m
Wheelbase1.06 m
Ground Clearance0.05 m
Weight
Overall Weight980kg
Performance
Max. Platform Occupancy2
Lift Capacity227 kg
Lift Capacity (Extension deck)115 kg
Drive speed (Stowed)0-3.2 km/h
Drive speed (Raised)0-0.5 km/h
Gradeability (Stowed)0.25
Turning Radius (Inside)0
Turning Radius (Outside)1.55 m
Maximum Working Inclination Angle1.5°/3°
Rise/Lower Speed38-42/40-44sec
ControlsProportional control
DriveDual rear wheel
BrakeDual rear wheel, electric
Tires size305×100 mm
Power
Battery2x12V DC(115Ah)
Charger100-240V15A


0407+0507--1.20407+0507--2.20407+0507--3.2

VM0507E Electric Wheel Vertical Mast Lift 6.8m Electric Wheel Vertical Mast Lift
