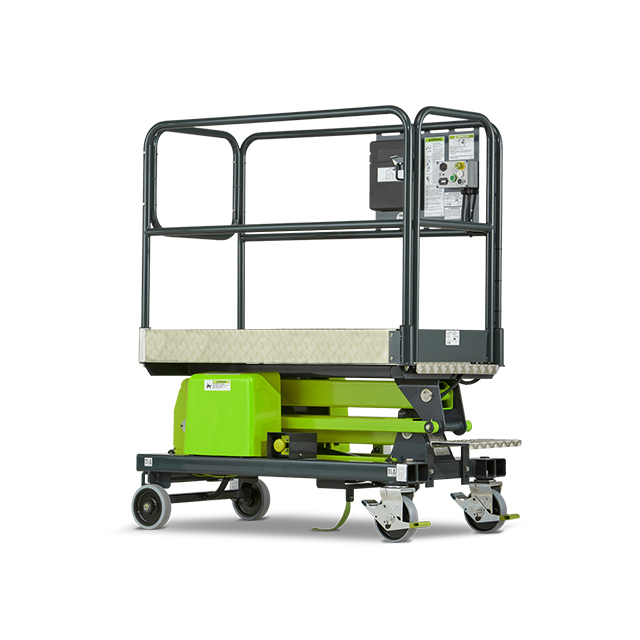

PA0307 Low Level Access Lift 5m Push Around Scissor Lift

The PA0307 low level access lift (also known as a push around scissor lift) has a working height of 5m, a load capacity of 250kg, and meets CE standards.
5m low level access can reduce the stress and fatigue experienced by workers due to repeated climbing of ladders and scaffolding. It is widely used in indoor and outdoor low-altitude work applications, such as: Low-rise building exterior cleaning, office ceiling repair, warehouse shelving replenishment, warehousing, shopping mall/supermarket renovation, etc.
Availability:
Quantity:
linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

Key Features


  • Access More Work: Large 1.7 x 0.7m platform provides access to more workspace without needing to reposition the unit.


  • Improve Operator Comfort: Platform position creates more ergonomic working conditions compared to ladders and scaffolding.


  • Carry More Tools and Materials: 250kg platform capacity increases productivity and reduces operator fatigue.


  • Operate on Sensitive Flooring: Lightweight design combined with low ground-bearing pressure makes this machine ideal for sensitive floors.


Dimensions
Max. Working Height5.0 m
A   Max. Platform Height3.0 m
B   Overall Length (Stowed)1.7 m
C   Overall Width0.76 m
D   Overall Height (Guardrails unfolded)1.83 m
Platform Length1.63 m
Platform Width0.7 m
Wheelbase1.35 m
Ground Clearance0.075 m
Weight
Overall Weight375kg
Performance
Max. Platform Occupancy1
Lift Capacity250 kg
MotionPush Around-Manual
Turning Radius (Inside)0
Turning Radius (Outside)1.65 m
Maximum Working Inclination Angle1.5°/2°
Rise/Lower Speed22-25/21-24 sec.
Tires size150×40 mm
Power
Battery12V DC(115Ah)
Charger100-240V10A


PA4.5PA3.8+PA4.5-详情页(2)PA3.8
