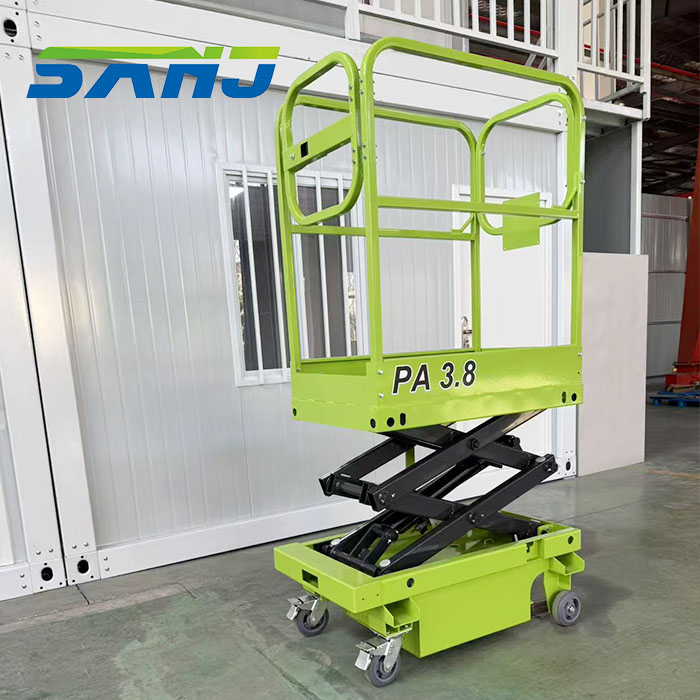

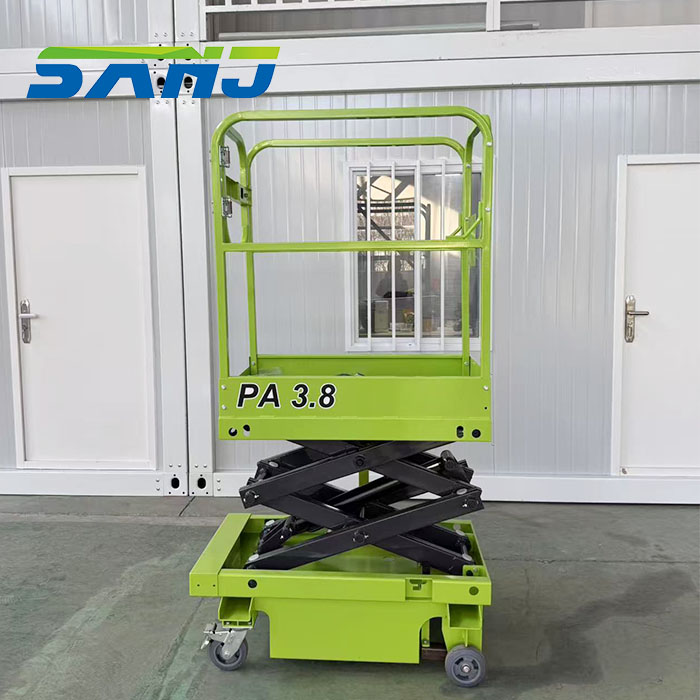

PA3.8 Low Level Access 3.8m Push Around Scissor Lift

The PA3.8 low level access lift (also known as a push around scissor lift) has an working height of 3.8m, a lift capacity of 240kg, and meets CE standards.
3.8m push around scissor lift is  suitable for installation and maintenance work in indoor low-altitude places, such as lamp replacement and cleaning, warehouse cargo stacking, interior decoration, etc.
Availability:
Quantity:
linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

Key Features


1. Low level access PA3.8 represents a simple, safe and efficient alternative to ladders and scaffolds.

2. The 3.8m low level access lift has a compact footprint and can easily fit through narrow passages such as elevators and hallways.

3. PA3.8 low level access is a scissor lift which combine high load capacity and large working platform.

4. The 3.8m push around scissor lift is welded with high-strength steel to ensure stable lifting.

5. PA3.8 low level access features a foldable safety guardrail to prevent falls. It also has a ground lock that locks the wheels once in position to prevent slipping during operation.

6. The PA3.8 push around scissor lift features overload protection, automatically locking the lift when the load capacity is exceeded to prevent tipping.

7. The 3.8m low level access lift reduces the stress and fatigue of workers who repeatedly climb ladders and scaffolding.

8. PA3.8 low level access lift is perfect for installation, finishing and maintenance works. PA3.8 gives operators the advantage of an ergonomic working position, so they can perform their duties safely.

Dimensions
Max. Working Height3.8 m
A   Max. Platform Height1.8 m
B   Overall Length (Stowed)1.13 m
C   Overall Width0.7 m
D   Overall Height (Guardrails unfolded)1.68 m
Platform Length1.0 m
Platform Width0.6 m
Wheelbase0.92 m
Ground Clearance0.05 m
Weight
Overall Weight315 kg
Performance
Max. Platform Occupancy1
Lift Capacity240 kg
MotionPush Around-Manual
Turning Radius (Inside)0
Turning Radius (Outside)1.2 m
Maximum Working Inclination Angle1.5°/2°
Rise/Lower Speed12-15/11-14 sec.
Tires size150×40 mm
Power
Battery12V DC(115Ah)
Charger100-240V10A


PA3.8+PA4.5-详情页(2)PA3.8
