Key Features

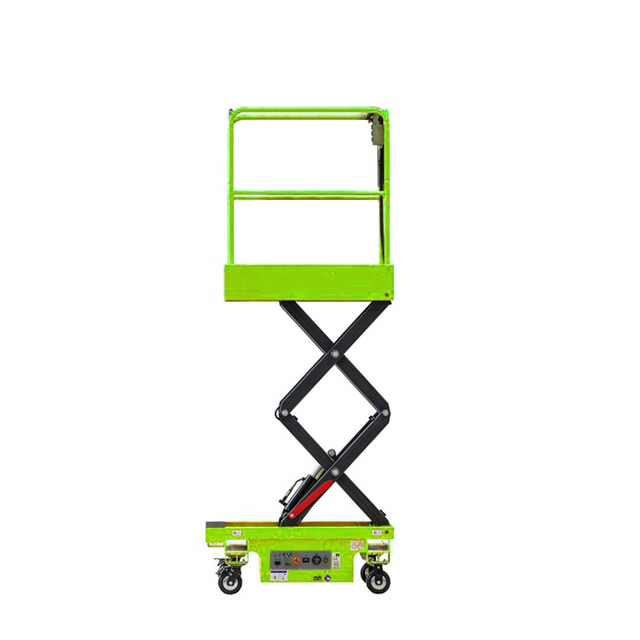

Low level access PA4.5 represents a simple, safe and efficient alternative to ladders and scaffolds.
4.5m low level access is a push around scissor lift which combine high load capacity and large working platform.
The 4.5m push around scissor lift is welded with high-strength steel to ensure stable lifting.
The PA4.5 4.5m low level access lift features overload protection, automatically locking the lift when the load capacity is exceeded to prevent tipping.
The PA4.5 4.5m push around scissor lift comes with platform guardrails to prevent falls.
The low level access lift features a ground lock that locks the wheels after moving into position to prevent slipping during operation.
PA4.5 Low level access is perfect for installation, finishing and maintenance works. PA4.5 gives operators the advantage of an ergonomic working position, so they can perform their duties safely.
Key Features
Low level access PA4.5 represents a simple, safe and efficient alternative to ladders and scaffolds.
4.5m low level access is a push around scissor lift which combine high load capacity and large working platform.
The 4.5m push around scissor lift is welded with high-strength steel to ensure stable lifting.
The PA4.5 4.5m low level access lift features overload protection, automatically locking the lift when the load capacity is exceeded to prevent tipping.
The PA4.5 4.5m push around scissor lift comes with platform guardrails to prevent falls.
The low level access lift features a ground lock that locks the wheels after moving into position to prevent slipping during operation.
PA4.5 Low level access is perfect for installation, finishing and maintenance works. PA4.5 gives operators the advantage of an ergonomic working position, so they can perform their duties safely.
| Dimensions | |
| Max. Working Height | 4.5 m |
| A Max. Platform Height | 2.5 m |
| B Overall Length (Stowed) | 1.13 m |
| C Overall Width | 0.7 m |
| D Overall Height (Guardrails unfolded) | 1.77 m |
| Platform Length | 1.0 m |
| Platform Width | 0.6 m |
| Wheelbase | 0.92 m |
| Ground Clearance | 0.05 m |
| Weight | |
| Overall Weight | 365kg |
| Performance | |
| Max. Platform Occupancy | 1 |
| Lift Capacity | 240 kg |
| Motion | Push Around-Manual |
| Turning Radius (Inside) | 0 |
| Turning Radius (Outside) | 1.2 m |
| Maximum Working Inclination Angle | 1.5°/2° |
| Rise/Lower Speed | 19-22/18-21 sec. |
| Tires size | 150×40 mm |
| Power | |
| Battery | 12V DC(115Ah) |
| Charger | 100-240V10A |
| Dimensions | |
| Max. Working Height | 4.5 m |
| A Max. Platform Height | 2.5 m |
| B Overall Length (Stowed) | 1.13 m |
| C Overall Width | 0.7 m |
| D Overall Height (Guardrails unfolded) | 1.77 m |
| Platform Length | 1.0 m |
| Platform Width | 0.6 m |
| Wheelbase | 0.92 m |
| Ground Clearance | 0.05 m |
| Weight | |
| Overall Weight | 365kg |
| Performance | |
| Max. Platform Occupancy | 1 |
| Lift Capacity | 240 kg |
| Motion | Push Around-Manual |
| Turning Radius (Inside) | 0 |
| Turning Radius (Outside) | 1.2 m |
| Maximum Working Inclination Angle | 1.5°/2° |
| Rise/Lower Speed | 19-22/18-21 sec. |
| Tires size | 150×40 mm |
| Power | |
| Battery | 12V DC(115Ah) |
| Charger | 100-240V10A |
