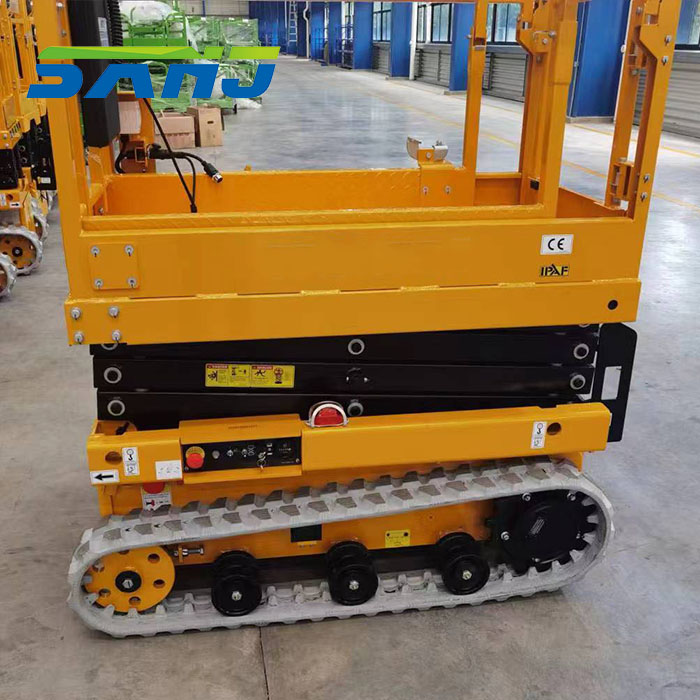

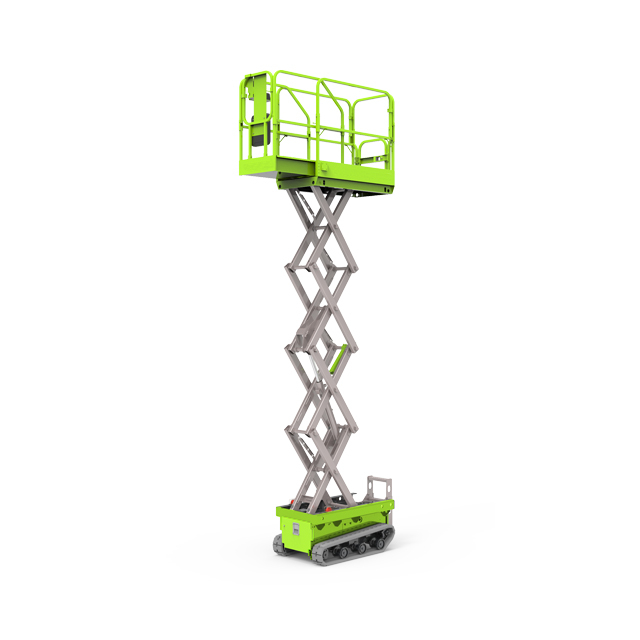

S0507C Crawler Scissor Lift 6.6m Working Height

S0507C crawler scissor lift, working height 6.6m, lifting capacity 200kg, and CE safety standards.

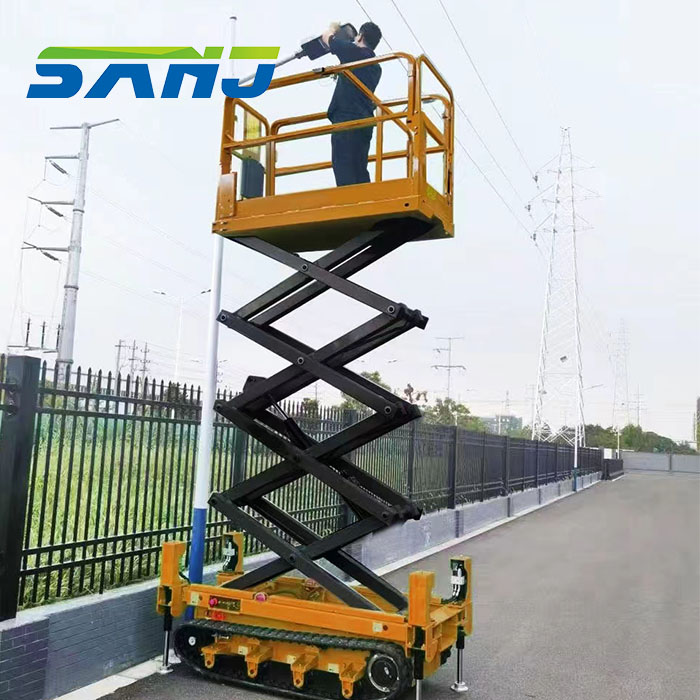

The 6.6m crawler scissor lift has excellent off-road capabilities, good stability, and the ability to adapt to a variety of complex terrains. It is widely used in aerial operations in the fields of construction, municipal maintenance, power maintenance, and landscaping.

Availability:
Quantity:
linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

Key Features


  • Rubber crawler provides small ground pressure and great obstacle crossing ability.

  • Pivot steering with good maneuverability.

  • Simple single handle control for steering and walking.



Cost Effectiveness

  • AC motor full lifecycle maintenance-free.

  • Knuckles lubrication-free and maintenance-free.

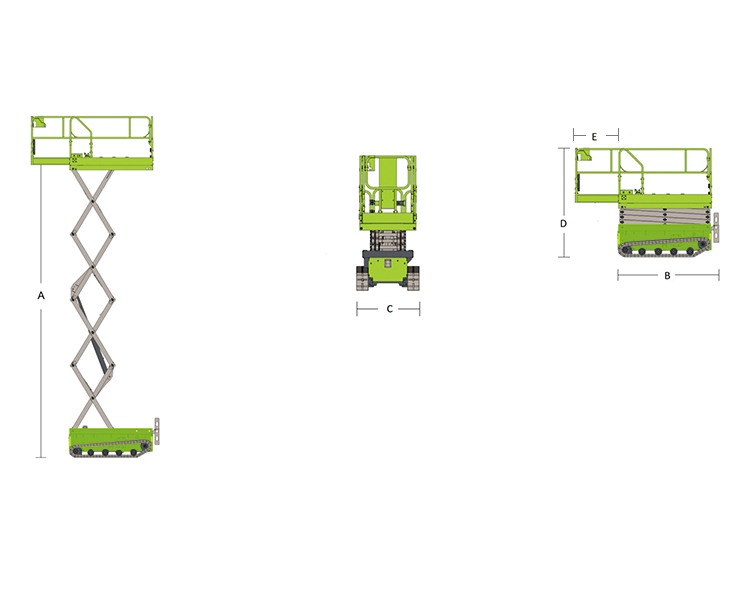

Dimensions
Max. Working Height6.6 m
A   Max. Platform Height4.6 m
B   Overall Length (Stowed)1.55m
C   Overall Width0.85 m
D   Overall Height (Guardrails unfolded)2.05 m
Overall Height (Guardrails folded)1.71 m
Platform Length (Stowed)1.28m
E    Max Horizontal Reach (Extension)0.56 m
Platform Width0.75m
Ground Clearance0.1 m
Weight
Overall Weight925 kg
Performance
Max. Platform Occupancy (In door)1
Max. Platform Occupancy (Out door)/
Lift Capacity200 kg
Lift Capacity (with outriggers deployed)/
Lift Capacity (Extension deck)115 kg
Driving HeightNo driving when lifting
Driving speed (Stowed)0-1.8 km/h
Driving speed (Raised)No driving when lifting
Gradealility0.3
Turning Radius (Inside)0
Turning Radius (Outside)0
Maximum Working Inclination Angle1.5°/2°
Longitudinal levelling Front/
Longitudinal levelling Rear/
Lateral levelling/
Rise/Lower Speed23-27/23-27 sec.
ControlsProportional control
Track tyre sizeCrawler, 150x72
Power
Battery24V DC(2x12V115Ah)
Charger100-240V15A
