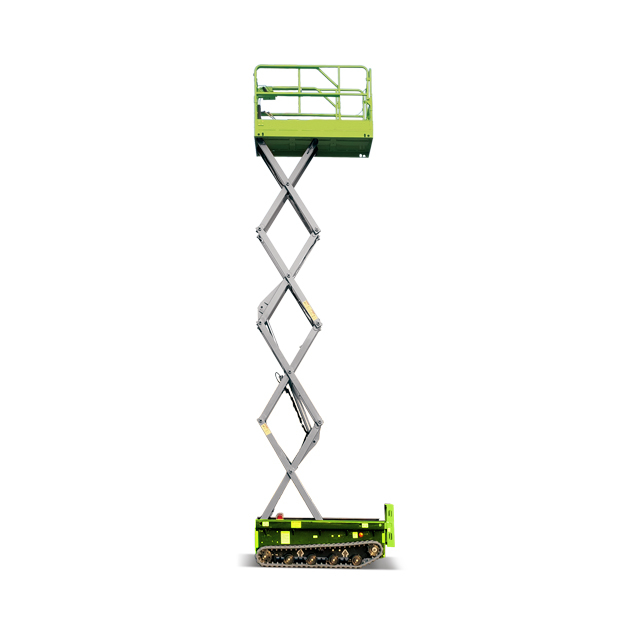

S0610C crawler scissor lift, working height 8m, lifting capacity 200kg, and CE safety standards.

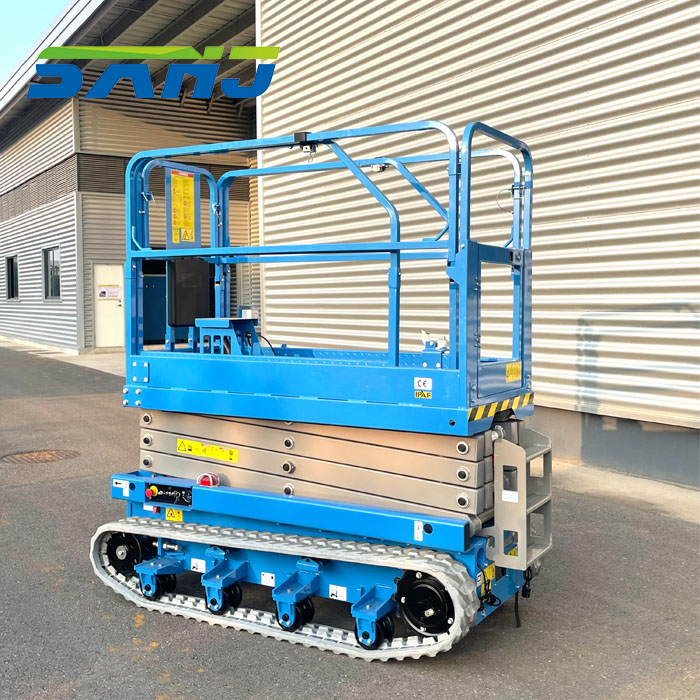

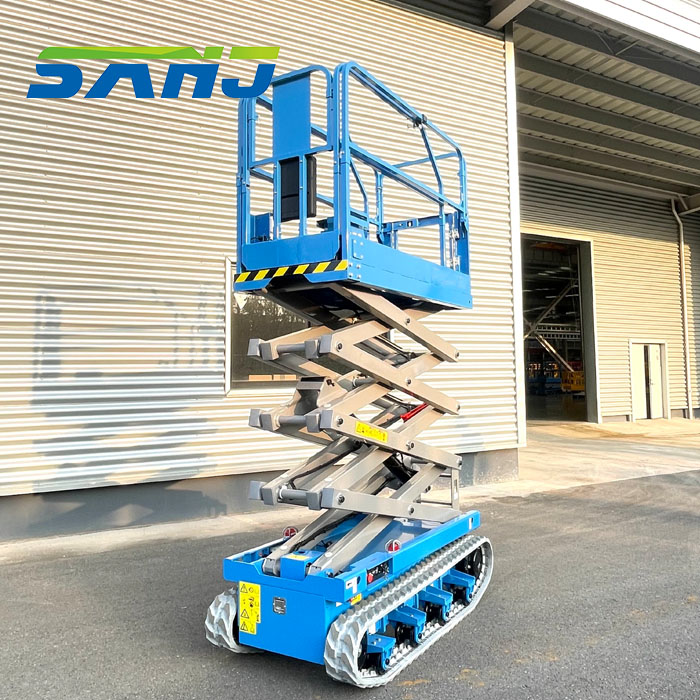

The 8m crawler scissor lift is an aerial work equipment that combines crawler walking mechanism and scissor lift structure. It has both the stability of a scissor platform and the powerful off-road capability of a crawler chassis, and is widely used in aerial work in a variety of complex or harsh environments.
| Availability: | |
|---|---|
| Quantity: | |
Key Features
Rubber crawler provides small ground pressure and great obstacle crossing ability.
Pivot steering with good maneuverability.
Simple single handle control for steering and walking.
AC motor full lifecycle maintenance-free.
Knuckles lubrication-free and maintenance-free.
Key Features
Rubber crawler provides small ground pressure and great obstacle crossing ability.
Pivot steering with good maneuverability.
Simple single handle control for steering and walking.
AC motor full lifecycle maintenance-free.
Knuckles lubrication-free and maintenance-free.
| Dimensions | |
| Max. Working Height | 8.0 m |
| A Max. Platform Height | 6.0 m |
| B Overall Length (Stowed) | 2.08 m |
| C Overall Width | 0.96 m |
| D Overall Height (Guardrails unfolded) | 2.15 m |
| Overall Height (Guardrails folded) | 1.65 m |
| Platform Length (Stowed) | 1.79 m |
| E Max Horizontal Reach (Extension) | 0.89 m |
| Platform Width | 0.78 m |
| Ground Clearance | 0.145 m |
| Weight | |
| Overall Weight | 1620kg |
| Performance | |
| Max. Platform Occupancy (In door) | 2 |
| Max. Platform Occupancy (Out door) | 1 |
| Lift Capacity | 200 kg |
| Lift Capacity (with outriggers deployed) | / |
| Lift Capacity (Extension deck) | 120 kg |
| Driving Height | No driving when lifting |
| Driving speed (Stowed) | 0-1.8 km/h |
| Driving speed (Raised) | No driving when lifting |
| Gradealility | 0.3 |
| Turning Radius (Inside) | 0 |
| Turning Radius (Outside) | 0 |
| Maximum Working Inclination Angle | 1.5°/2° |
| Longitudinal levelling Front | / |
| Longitudinal levelling Rear | / |
| Lateral levelling | / |
| Rise/Lower Speed | 34-38/26-30sec |
| Controls | Proportional control |
| Track tyre size | Crawler, 180x72 |
| Power | |
| Battery | 48V DC(4x12V115Ah) |
| Charger | 90-240V36A |
