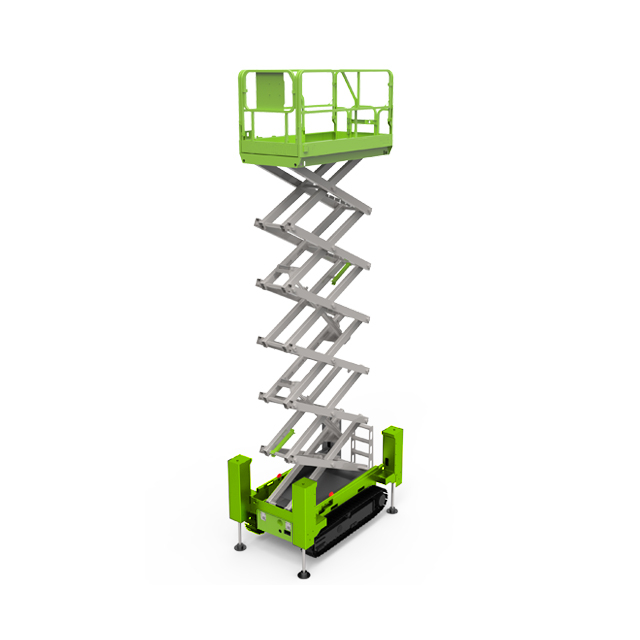

S0610CL 8m Crawler Scissor Lift With Self Leveling

S0610CL crawler scissor lift with self-leveling, working height 8m, lifting capacity 200kg, CE certification.

The 8m crawler scissor lift with self-leveling is based on the crawler chassis and scissor lift structure, with automatic leveling hydraulic legs added, which can automatically adjust the platform level on uneven ground, further improving safety and application range.

Availability:
Quantity:
linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

Key Features


  • Rubber crawler provides small ground pressure and great obstacle crossing ability.


  • Pivot steering with good maneuverability.


  • Simple single handle control for steering and walking.



Cost Effectiveness

  • Knuckles lubrication-free and maintenance-free.


  • AC motor full lifecycle maintenance-free.


Dimensions
Max. Working Height8.0 m
A   Max. Platform Height6.0 m
B   Overall Length (Stowed)2.27 m
C   Overall Width0.96 m
D   Overall Height (Guardrails unfolded)2.15 m
Overall Height (Guardrails folded)1.65 m
Platform Length (Stowed)1.79 m
E    Max Horizontal Reach (Extension)0.89 m
Platform Width0.78 m
Ground Clearance0.145 m
Weight
Overall Weight1750 kg
Performance
Max. Platform Occupancy (In door)2
Max. Platform Occupancy (Out door)2
Lift Capacity200 kg
Lift Capacity (with outriggers deployed)230 kg
Lift Capacity (Extension deck)120 kg
Driving HeightNo driving when lifting
Driving speed (Stowed)0-1.8 km/h
Driving speed (Raised)No driving when lifting
Gradealility0.3
Turning Radius (Inside)0
Turning Radius (Outside)0
Maximum Working Inclination Angle1.5°/2°
Longitudinal levelling Front+/- 10.37°
Longitudinal levelling Rear+/- 10.44°
Lateral levelling+/- 19.17°
Rise/Lower Speed34-38/26-30sec
ControlsProportional control
Track tyre sizeCrawler, 180x72
Power
Battery48V DC(4x12V115Ah)
Charger90-240V36A
