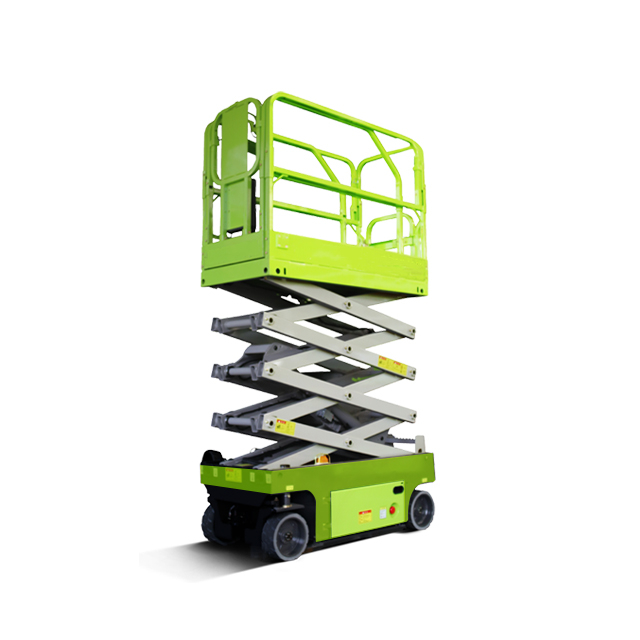

S0608E Electric Wheel Scissor Lift 8m Working Height

S0608E Electric Wheel Scissor Lift 8m Working Height

The S0608E electric wheel scissor lift has a working height of 8m and a lifting capacity of 230kg. It meets CE standards and offers reliable quality. The platform can be extended by 90cm to expand the working range.
The 8m electric wheel scissor lift features a zero-emission, low-noise electric drive, making it safe for use in enclosed environments such as interior renovations, shopping mall maintenance, and warehouse shelving. Its flexible and lightweight wheel design allows for easy maneuvering through narrow aisles, making it a cost-effective choice for small and medium-sized aerial work.

Quantity:
Availability:





Inquire Add to Basket

High Performance

AC system offers higher working efficiency

IP67 rated waterproof protection on AC wheel motors for longer lifespan

Lithium-ion batteries features long service life that the running time increases b30%, and could apply to -20'℃ cold working conditions

Cost Effectiveness

Knuckles lubrication-free and maintenance-free

AC motor full lifecycle maintenance-free

Swing-out tray easy to service

Intelligent Connectivity

Battery Management System (BMS) + Machine control system provide dualprotection

Electric Wheel Scissor Lift Scissor Lift 8m Working Height

Inquire

Dimensions
A1 Max. Working Height	8.0 m
A2 Max. Platform Height	6.0 m
B Overall Length (Stowed)	2.47 m
C Overall Width	0.77m
D Overall Height (Guardrails unfolded)	2.22 m
Overall Height (Guardrails folded)	1.67 m
E Max Horizontal Reach (Extension)	0.90 m
F Platform Length (Stowed)	2.25 m
G Platform Width	1.16 m
H Wheelbase	1.88 m
I Ground Clearance (Stowed)	0.06 m
J Ground Clearance (Lifting)	0.02 m
Weight
Overall Weight	2290kg
Performance
Max. Platform Occupancy (In door)	2
Max. Platform Occupancy (Out door)	2
Lift Capacity	230 kg
Lift Capacity (Extension deck)	120 kg
Driving Height	Full height
Driving speed (Stowed)	0-3.0 km/h
Driving speed (Raised)	0-0.8 km/h
Gradealility	0.3
Turning Radius (Inside)	0
Turning Radius (Outside)	2.3 m
Maximum Working Inclination Angle	1.5°/3°
Rise/Lower Speed	18/28 sec.
Track Tyre	381x127 mm
Power
Battery	4x6V/240Ah
Charger	90-240V/30A

Dimensions
A1 Max. Working Height	8.0 m
A2 Max. Platform Height	6.0 m
B Overall Length (Stowed)	2.47 m
C Overall Width	0.77m
D Overall Height (Guardrails unfolded)	2.22 m
Overall Height (Guardrails folded)	1.67 m
E Max Horizontal Reach (Extension)	0.90 m
F Platform Length (Stowed)	2.25 m
G Platform Width	1.16 m
H Wheelbase	1.88 m
I Ground Clearance (Stowed)	0.06 m
J Ground Clearance (Lifting)	0.02 m
Weight
Overall Weight	2290kg
Performance
Max. Platform Occupancy (In door)	2
Max. Platform Occupancy (Out door)	2
Lift Capacity	230 kg
Lift Capacity (Extension deck)	120 kg
Driving Height	Full height
Driving speed (Stowed)	0-3.0 km/h
Driving speed (Raised)	0-0.8 km/h
Gradealility	0.3
Turning Radius (Inside)	0
Turning Radius (Outside)	2.3 m
Maximum Working Inclination Angle	1.5°/3°
Rise/Lower Speed	18/28 sec.
Track Tyre	381x127 mm
Power
Battery	4x6V/240Ah
Charger	90-240V/30A

S0608E Electric Wheel Scissor Lift 8m Working Height
