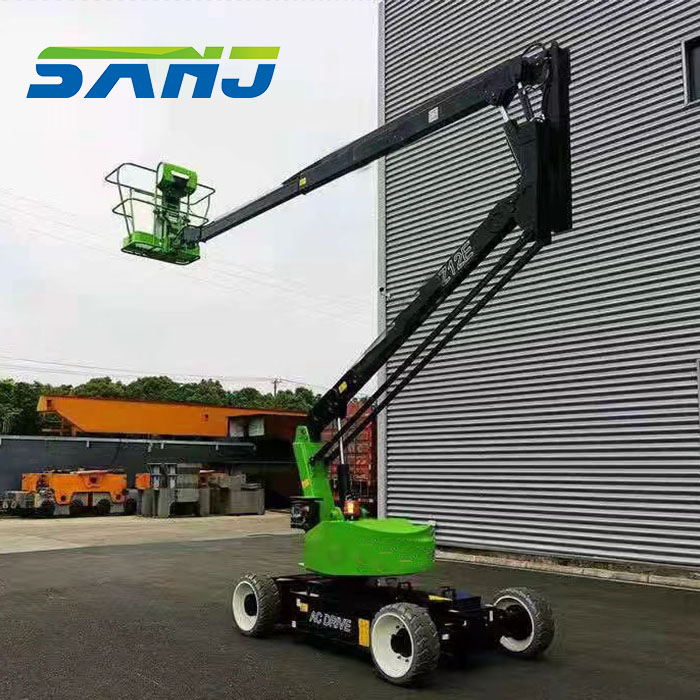

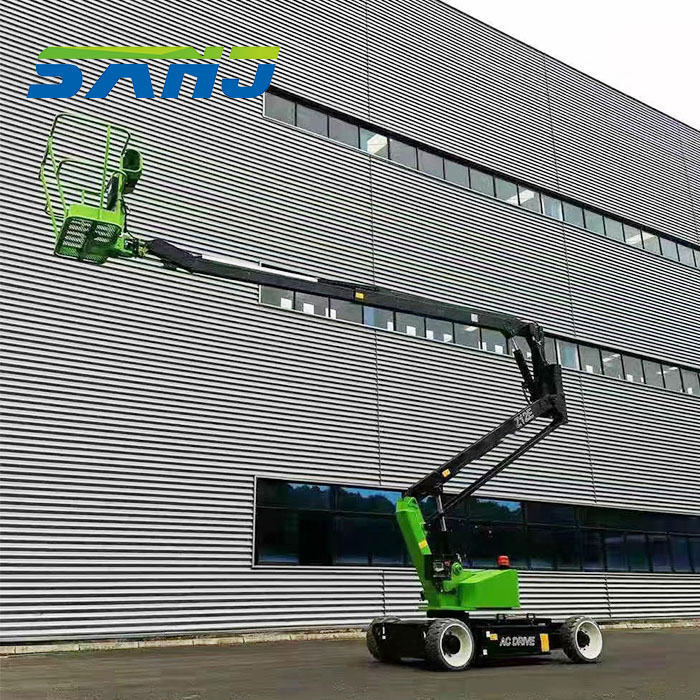

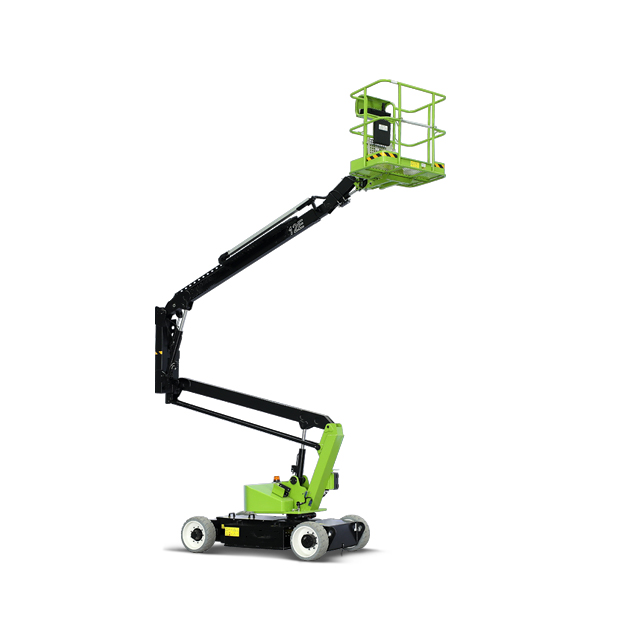

Z-12E Electric Articulating Boom Lifts 13.5m Working Height

The Z-12E electric articulating boom lift has a working height of 13.5m, a load capacity of 215kg, and meets CE standards. Its articulated boom design allows for flexible extension at multiple angles and directions, providing a wide working range.
The 13.5m electric articulating boom lifts are electrically driven, operate with low noise, and are widely used for exterior wall repair, curtain wall cleaning, street light installation, garden tree trimming, bridge inspection, large venue ceiling installation, workshop equipment maintenance, and equipment installation in exhibition halls and stadiums.

Quantity:
Availability:





Inquire Add to Basket

Key Features

Great structural rigidity, and small boom deflection.

Advanced dual control system (valve control +pump control) offers a energy-saving, smooth and efficient control.

Accurate and efficient traveling AC drive system provides strong power and stable control.

Independent auxiliary power system for more secure application.

Standard fast charger for short charging time.

Z-12E Electric Articulating Boom Lifts 13.5m Electric Articulating Boom Lifts

Inquire

Dimension
Max. Working Height	13.5 m
Max. Platform Height	11.5 m
Max. Horizontal Outreach	6.83 m
Max. Up and Over Clearance	5.4 m
Platform Dimensions(L×W×H)	1.26 × 0.7 × 1.1m
A Length-Stowed	4.3 m
B Width-Stowed	1.5 m
C Height-Stowed	1.9 m
Wheelbase	2 m
Ground Clearance
Weight
Overall Weight	3800 kg
Performance
Max. Platform Occupancy	2
Platform Capacity	215 kg
Drive Speed-Stowed	0-4km/h
Drive Speed-Raised	0-0.8km/h
Gradeability	30%
Jib tilting	/
Platform Rotation	180°
Turntable Rotation	355° non-continuous
Turning Radius-Inside	0.91 m
Turning Radius-Outside	2.36 m
Turntable Tailswing	0m
Control	Proportional
Drive	2WD
Tyres Spec/Type	22x9-16 Non-marking
Drive system	AC Drive motor
Power
Power Source	8 x 6V, 225Ah AGM Battery
Charger	48V/36A

Dimension
Max. Working Height	13.5 m
Max. Platform Height	11.5 m
Max. Horizontal Outreach	6.83 m
Max. Up and Over Clearance	5.4 m
Platform Dimensions(L×W×H)	1.26 × 0.7 × 1.1m
A Length-Stowed	4.3 m
B Width-Stowed	1.5 m
C Height-Stowed	1.9 m
Wheelbase	2 m
Ground Clearance
Weight
Overall Weight	3800 kg
Performance
Max. Platform Occupancy	2
Platform Capacity	215 kg
Drive Speed-Stowed	0-4km/h
Drive Speed-Raised	0-0.8km/h
Gradeability	30%
Jib tilting	/
Platform Rotation	180°
Turntable Rotation	355° non-continuous
Turning Radius-Inside	0.91 m
Turning Radius-Outside	2.36 m
Turntable Tailswing	0m
Control	Proportional
Drive	2WD
Tyres Spec/Type	22x9-16 Non-marking
Drive system	AC Drive motor
Power
Power Source	8 x 6V, 225Ah AGM Battery
Charger	48V/36A

Z-12E Electric Articulating Boom Lifts 13.5m Working Height
