S-20J Electric Telescopic Boom Lift 21.5m Working Height

The S-J20 electric telescopic boom lift (also known as a telescopic boom aerial work platform) has a working height of 21.5m, a platform load of 300kg, CE standards, and reliable quality. The 21.5m electric telescopic boom lift features a 130° tilt jib, 180° platform rotation, and a 355° turntable, providing flexible operation and expanding the working range.
The 21.5m telescopic boom lift can flexibly adjust the reach, making it easy to reach hard-to-reach work areas.
The S-J20 electric telescopic boom lift is revolutionizing aerial work, ensuring safety and efficiency. Its advanced features and environmentally friendly design make it widely used for indoor and outdoor building cleaning, equipment installation, maintenance, and high-altitude exterior wall and window cleaning.
Availability:
Quantity:
Inquire Add to Basket

linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

Key Features


  • Accurate and effective drive system, strong power, stable control, and motor maintenance free.



  • New off-road chassis, gradeability of 45%, strong obstacle climbing ability.



  • High frequency and low amplitude response control technology, click to move with buffer.



  • Compact design and folded jib for wrecker and container transportation.


Dimension
Max. Working Height21.5 m
Max. Platform Height19.5 m
Max. Horizontal Outreach13.5 m
Platform Dimensions(L×W×H)2.44 × 0.91 × 1.1m
A  Length-Stowed10.8 m
B  Width-Stowed2.5 m
C  Height-Stowed26 m
Wheelbase2.5 m
Ground Clearance
Weight
Overall Weight10500 kg
Performance
Max. Platform Occupancy3
Platform Capacity300 kg
Drive Speed-Stowed0-5km/h
Drive Speed-Raised0-1.1km/h
Gradeability45%
Jib tilting130°
Platform Rotation180°
Turntable Rotation355° non-continuous
Turning Radius-Inside3.1 m
Turning Radius-Outside5.5 m
Turntable Tailswing1.45 m
ControlProportional
Drive4WD
Tyres Spec/Type355/55D 625
Drive systemAC Drive motor
Power
Power Source48V, 370Ah Battery
Charger48V/60A

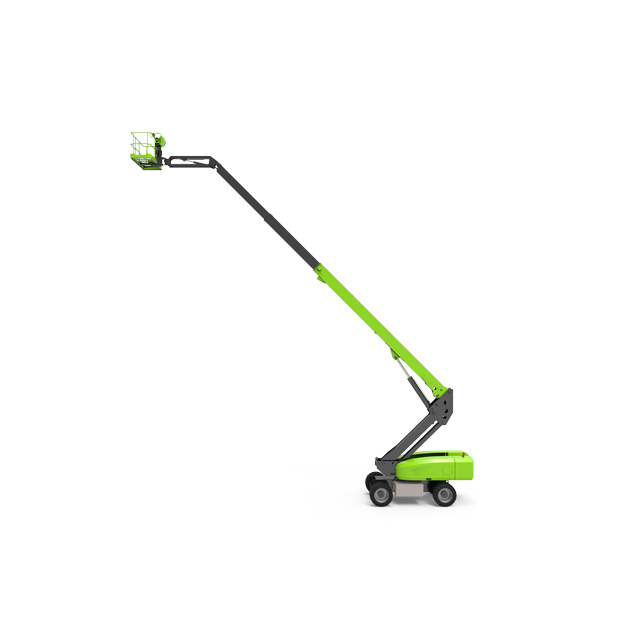

WechatIMG55

S-20J
