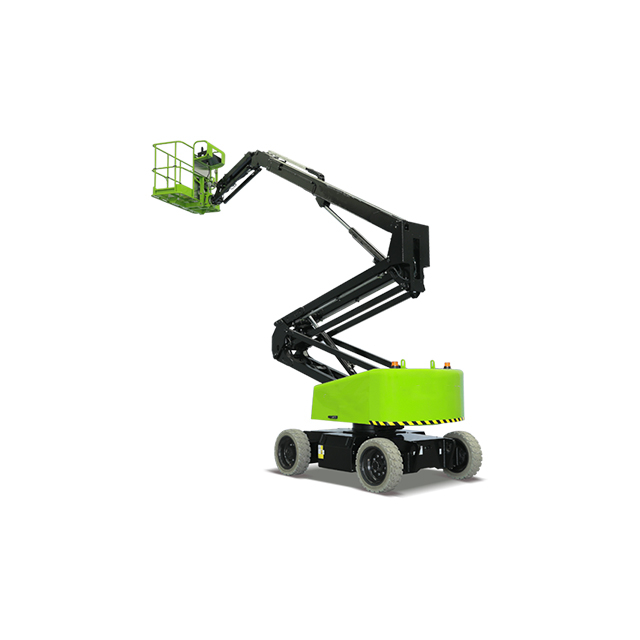

Z-15E Electric Articulated Boom Lift 17m Working Height

The Z-15E electric articulated boom lift has a working height of 17m, load capacity of 200 kg, and meets CE standards. The 17m electric articulated boom lift features a unique articulated boom structure that allows it to flexibly overcome obstacles, enabling multi-angle and multi-point operations, providing you with a larger working range and improving work efficiency. Suitable for various indoor and outdoor high-altitude installation, maintenance, and cleaning operations.

Quantity:
Availability:





Inquire Add to Basket

Key Features

Great structural rigidity, and small boom deflection.

Advanced dual control system (valve control +pump control) offers a energy-saving, smooth and efficient control.

Accurate and efficient traveling AC drive system provides strong power and stable control.

Independent auxiliary power system for more secure application.

Standard fast charger for short charging time.

Z-15E Electric Articulated Boom Lift 17m Electric Articulated Boom Lift

Inquire

Related News

Advantages of Articulated Boom Lifts

Dimension
Max. Working Height	17m
Max. Platform Height	15m
Max. Horizontal Outreach	8.7m
Max. Up and Over Clearance	5.5m
Platform Dimensions(L×W×H)	1.2× 0.7 x 1.1m
A Length-Stowed	5.5m
B Width-Stowed	1.9m
C Height-Stowed	1.92m
Wheelbase	2 m
Ground Clearance
Weight
Overall Weight	5500kg
Performance
Max. Platform Occupancy	2
Platform Capacity	200kg
Drive Speed-Stowed	0-5km/h
Drive Speed-Raised	0-0.8km/h
Gradeability	30%
Jib tilting	0-90°
Platform Rotation	180°
Turntable Rotation	355° non-continuous
Turning Radius-Inside	1.8m
Turning Radius-Outside	4.27m
Turntable Tailswing	0m
Control	Proportional
Drive	2WD
Tyres Spec/Type	22x9-16 Non-marking
Drive system	AC Drive motor
Power
Power Source	8X6V/320Ah AGM Battery
Charger	48V/36A

Dimension
Max. Working Height	17m
Max. Platform Height	15m
Max. Horizontal Outreach	8.7m
Max. Up and Over Clearance	5.5m
Platform Dimensions(L×W×H)	1.2× 0.7 x 1.1m
A Length-Stowed	5.5m
B Width-Stowed	1.9m
C Height-Stowed	1.92m
Wheelbase	2 m
Ground Clearance
Weight
Overall Weight	5500kg
Performance
Max. Platform Occupancy	2
Platform Capacity	200kg
Drive Speed-Stowed	0-5km/h
Drive Speed-Raised	0-0.8km/h
Gradeability	30%
Jib tilting	0-90°
Platform Rotation	180°
Turntable Rotation	355° non-continuous
Turning Radius-Inside	1.8m
Turning Radius-Outside	4.27m
Turntable Tailswing	0m
Control	Proportional
Drive	2WD
Tyres Spec/Type	22x9-16 Non-marking
Drive system	AC Drive motor
Power
Power Source	8X6V/320Ah AGM Battery
Charger	48V/36A
