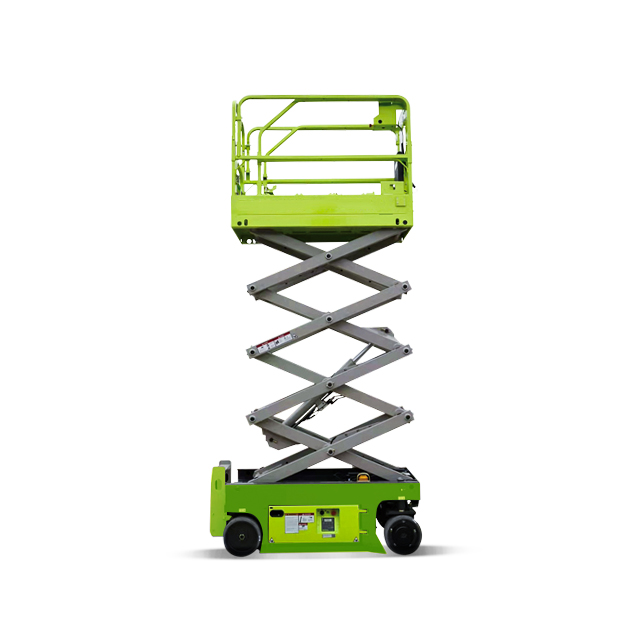

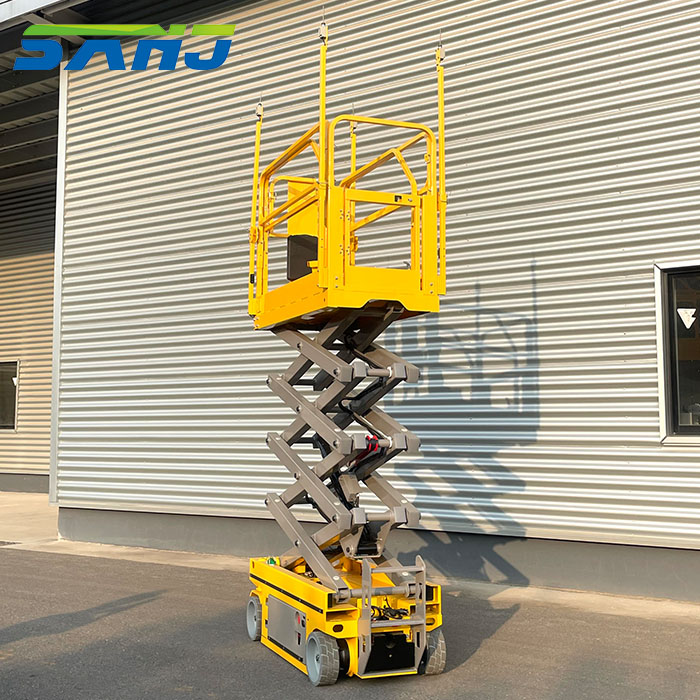

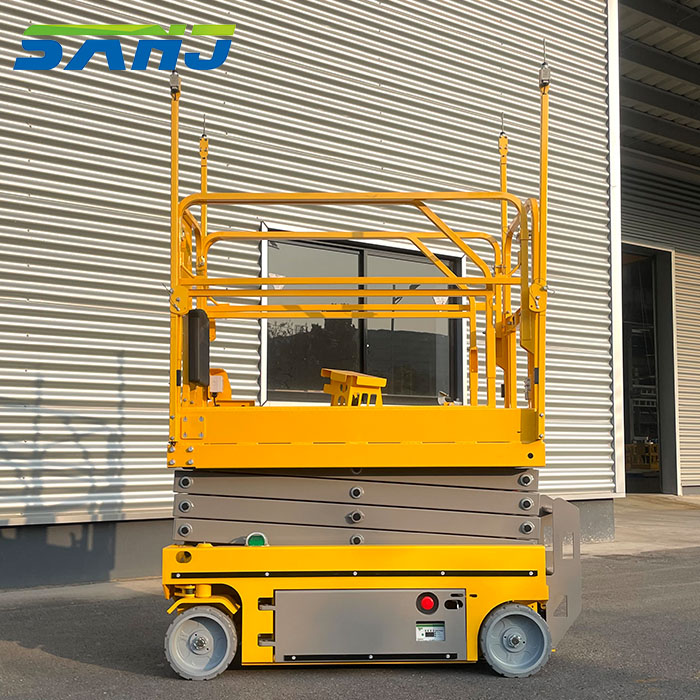

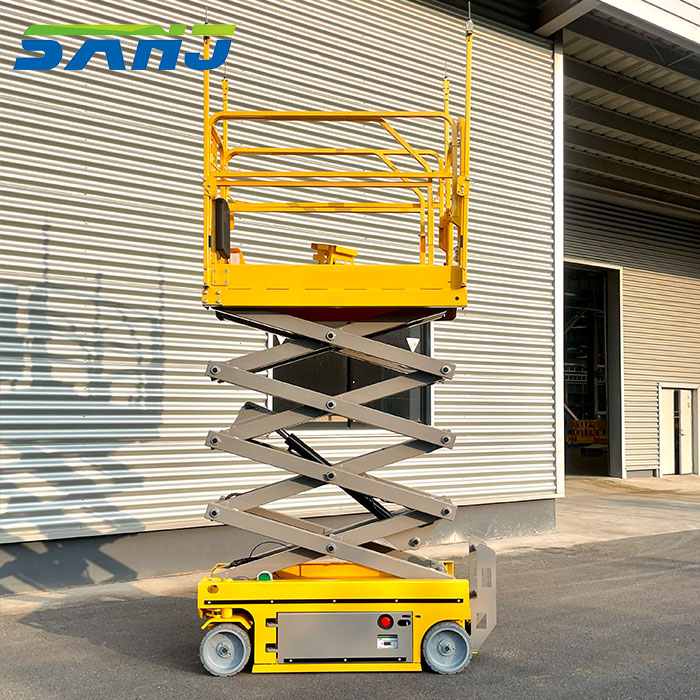

S0607E 7.8m Electric Wheel Scissor Lift 230kg Capacity

The S0607E electric wheel scissor lift has a working height of 7.8m and a lifting load of 230kg. The product meets CE standards. 230kg electric wheel scissor lift, the platform length can be extended by 90cm to expand the working range. Equipped with multiple safety devices such as emergency stop button, pothole protection, tilt protection system, etc.

The 7.8m electric wheel scissor lift offers zero emissions and low noise, eliminating the pollution and noise associated with traditional fuel-powered equipment. Its flexible and lightweight wheel structure and foldable safety rails enhance maneuverability. It is a reliable choice for small and medium-sized aerial work, both indoors and outdoors.

Availability:
Quantity:
linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

High Performance


  • AC system offers higher working efficiency


  • IP67 rated waterproof protection on AC wheel motors for longer lifespan


  • Lithium-ion batteries features long service life that the running time increases b30%, and could apply to -20'℃ cold working conditions


Cost Effectiveness
  • Knuckles lubrication-free and maintenance-free


  • AC motor full lifecycle maintenance-free


  • Swing-out tray easy to service


  • Intelligent Connectivity


Battery Management System (BMS) + Machine control system provide dualprotection


Dimensions
A1    Max. Working Height7.80 m
A2    Max. Platform Height5.80 m
B       Overall Length (Stowed)1.88 m
C       Overall Width0.77 m
D       Overall Height (Guardrails unfolded)2.12m
Overall Height (Guardrails folded)1.65 m
E        Max Horizontal Reach (Extension)0.90 m
F        Platform Length (Stowed)1.65 m
G       Platform Width0.76 m
H       Wheelbase1.38 m
I         Ground Clearance (Stowed)0.06 m
J        Ground Clearance (Lifting)0.02 m
Weight
Overall Weight1600 kg
Performance
Max. Platform Occupancy (In door)2
Max. Platform Occupancy (Out door)0
Lift Capacity230 kg
Lift Capacity (Extension deck)120 kg
Driving HeightFull height
Driving speed (Stowed)0-3.2 km/h
Driving speed (Raised)0-0.8 km/h
Gradealility0.25
Turning Radius (Inside)0
Turning Radius (Outside)1.7 m
Maximum Working Inclination Angle2°/3°
Rise/Lower Speed23/28 sec.
Track Tyre305x100 mm
Power
Battery4x6V/200Ah
Charger90-240V/30A
