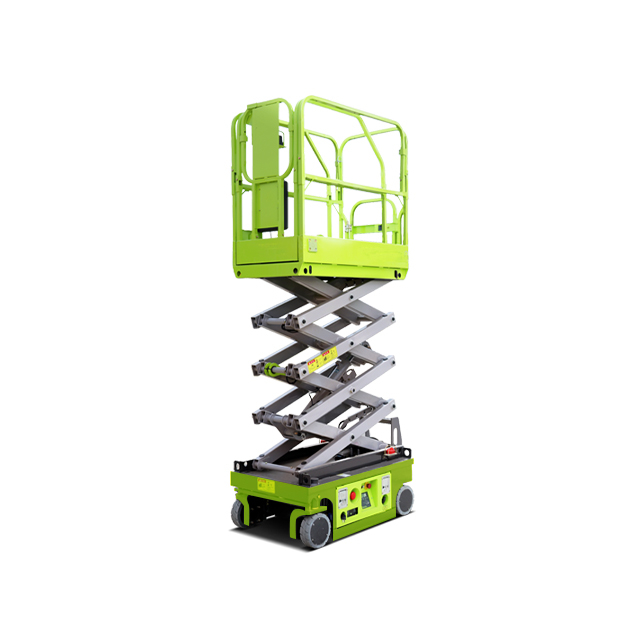

S0508 Wheel Scissor Lift 6.6m Working Height

S0508 Wheel Scissor Lift 6.6m Working Height

S0508 wheeled scissor lift, working height 6.6m, lifting capacity 200kg.

It is widely used in construction sites, hotels, warehouses, airports, stations, docks, stadiums and other buildings for high-altitude maintenance, cleaning, decoration operations, etc.

Quantity:
Availability:





Inquire Add to Basket

Cost Effectiveness

Optimized design ,increases 20% more duty cycles with longer runtime.

Precision control for stable operation.

Large ground clearance (Pothole Protection retracted), great trafficability.

Easy Maintenance & Service

Common components and modular design, easy to maintenance.

Bilateral swing-out trays (battery & hydraulich), simple to service.

Robust & build to last, reliable and safe.

S0508 Scissor Lift Scissor Lift 6.6m 6.6m Wheel Scissor Lift

Inquire

Related News

content is empty!

Dimensions
A1 Max. Working Height	6.6 m
A2 Max. Platform Height	4.6 m
B Overall Length (Stowed)	1.56 m
C Overall Width	0.81 m
D Overall Height (Guardrails unfolded)	2.07 m
Overall Height (Guardrails folded)	1.71 m
E Max Horizontal Reach (Extension)	0.60 m
F Platform Length (Stowed)	1.37 m
G Platform Width	0.70 m
H Wheelbase	1.13 m
I Ground Clearance (Stowed)	0.06 m
J Ground Clearance (Lifting)	0.02 m
Weight
Overall Weight	870 kg
Performance
Max. Platform Occupancy (In door)	1
Max. Platform Occupancy (Out door)	0
Lift Capacity	200 kg
Lift Capacity (Extension deck)	110 kg
Driving Height	Full height
Driving speed (Stowed)	0-3.0 km/h
Driving speed (Raised)	0-0.5 km/h
Gradealility	0.25
Turning Radius (Inside)	0
Turning Radius (Outside)	1.6 m
Maximum Working Inclination Angle	1.5°/3°
Rise/Lower Speed	23/25 sec.
Track Tyre	280x76 mm
Power
Battery	2x12V/100Ah
Charger	90-240V/30A

Dimensions
A1 Max. Working Height	6.6 m
A2 Max. Platform Height	4.6 m
B Overall Length (Stowed)	1.56 m
C Overall Width	0.81 m
D Overall Height (Guardrails unfolded)	2.07 m
Overall Height (Guardrails folded)	1.71 m
E Max Horizontal Reach (Extension)	0.60 m
F Platform Length (Stowed)	1.37 m
G Platform Width	0.70 m
H Wheelbase	1.13 m
I Ground Clearance (Stowed)	0.06 m
J Ground Clearance (Lifting)	0.02 m
Weight
Overall Weight	870 kg
Performance
Max. Platform Occupancy (In door)	1
Max. Platform Occupancy (Out door)	0
Lift Capacity	200 kg
Lift Capacity (Extension deck)	110 kg
Driving Height	Full height
Driving speed (Stowed)	0-3.0 km/h
Driving speed (Raised)	0-0.5 km/h
Gradealility	0.25
Turning Radius (Inside)	0
Turning Radius (Outside)	1.6 m
Maximum Working Inclination Angle	1.5°/3°
Rise/Lower Speed	23/25 sec.
Track Tyre	280x76 mm
Power
Battery	2x12V/100Ah
Charger	90-240V/30A
