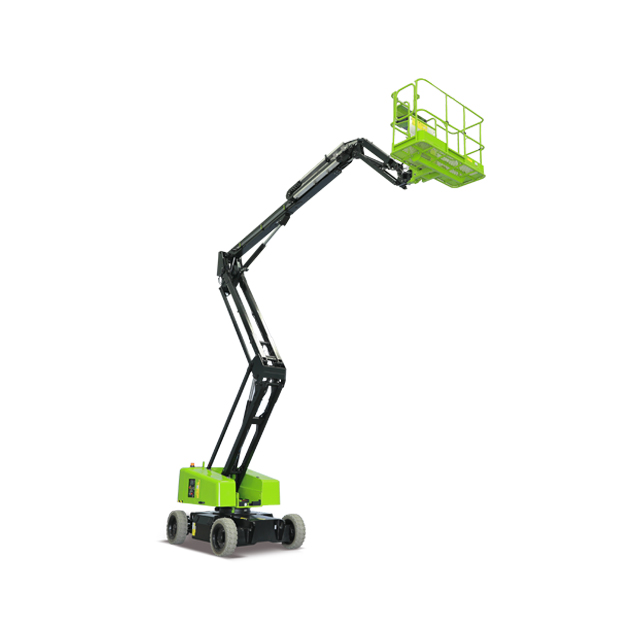

Z-13E Electric Articulating Boom Lift 15m Working Height

The Z-13E electric articulating boom lift has a working height of 15m, load capacity of 200 kg, and meets CE standards.

15m electric articulating boom lift is electrically driven, with zero emissions and low noise, offering flexible operation suitable for various indoor and outdoor high-altitude installation, maintenance, and cleaning tasks. Its articulated boom design allows it to flexibly overcome obstacles, enabling multi-angle and multi-position operations, significantly improving construction efficiency and safety.

Quantity:
Availability:





Inquire Add to Basket

Key Features

Great structural rigidity, and small boom deflection.
The 15m electric articulating boom lift can easily traverse obstacles, enabling multi-directional operations, including "up, down, over, and across."
Advanced dual control system (valve control +pump control) offers a energy-saving, smooth and efficient control.
Accurate and efficient traveling AC drive system provides strong power and stable control.
Independent auxiliary power system for more secure application.
Standard fast charger for short charging time.
The 15m electric articulating boom lift is equipped with solid rubber tires, providing strong off-road performance and good road adaptability.

Z-13E Electric Articulating Boom Lift 15m Electric Articulating Boom Lift 15m Articulated Boom Lift

Inquire

Dimension
Max. Working Height	15m
Max. Platform Height	13m
Max. Horizontal Outreach	8.3m
Max. Up and Over Clearance	5.5m
Platform Dimensions(L×W×H)	1.2 × 0.7 × 1.1m
A Length-Stowed	5.5m
B Width-Stowed	1.75m
C Height-Stowed	1.92m
Wheelbase	2 m
Ground Clearance
Weight
Overall Weight	5100kg
Performance
Max. Platform Occupancy	2
Platform Capacity	200kg
Drive Speed-Stowed	0-5km/h
Drive Speed-Raised	0-0.8km/h
Gradeability	30%
Jib tilting	0-90°
Platform Rotation	180°
Turntable Rotation	355° non-continuous
Turning Radius-Inside	1.8m
Turning Radius-Outside	2.36 m
Turntable Tailswing	0m
Control	Proportional
Drive	2WD
Tyres Spec/Type	22x9-16 Non-marking
Drive system	AC Drive motor
Power
Power Source	8X6V/320Ah AGM Battery
Charger	48V/36A

Dimension
Max. Working Height	15m
Max. Platform Height	13m
Max. Horizontal Outreach	8.3m
Max. Up and Over Clearance	5.5m
Platform Dimensions(L×W×H)	1.2 × 0.7 × 1.1m
A Length-Stowed	5.5m
B Width-Stowed	1.75m
C Height-Stowed	1.92m
Wheelbase	2 m
Ground Clearance
Weight
Overall Weight	5100kg
Performance
Max. Platform Occupancy	2
Platform Capacity	200kg
Drive Speed-Stowed	0-5km/h
Drive Speed-Raised	0-0.8km/h
Gradeability	30%
Jib tilting	0-90°
Platform Rotation	180°
Turntable Rotation	355° non-continuous
Turning Radius-Inside	1.8m
Turning Radius-Outside	2.36 m
Turntable Tailswing	0m
Control	Proportional
Drive	2WD
Tyres Spec/Type	22x9-16 Non-marking
Drive system	AC Drive motor
Power
Power Source	8X6V/320Ah AGM Battery
Charger	48V/36A
