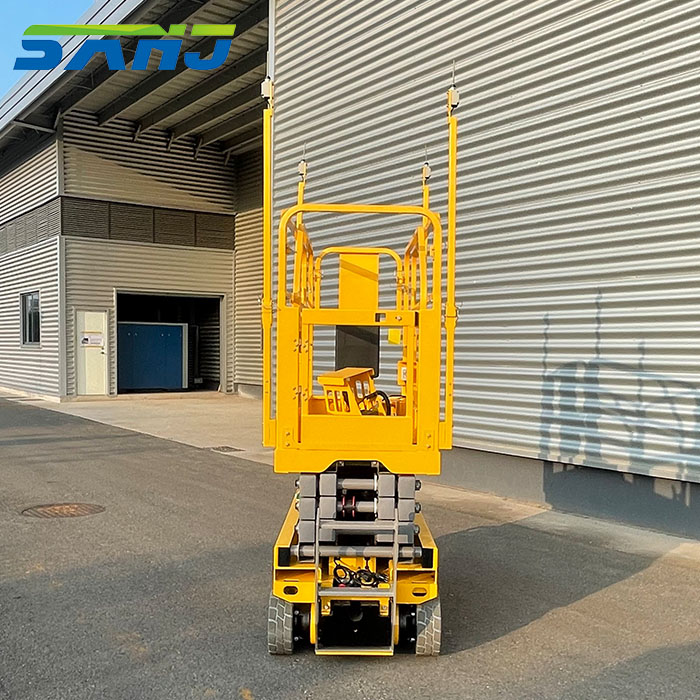

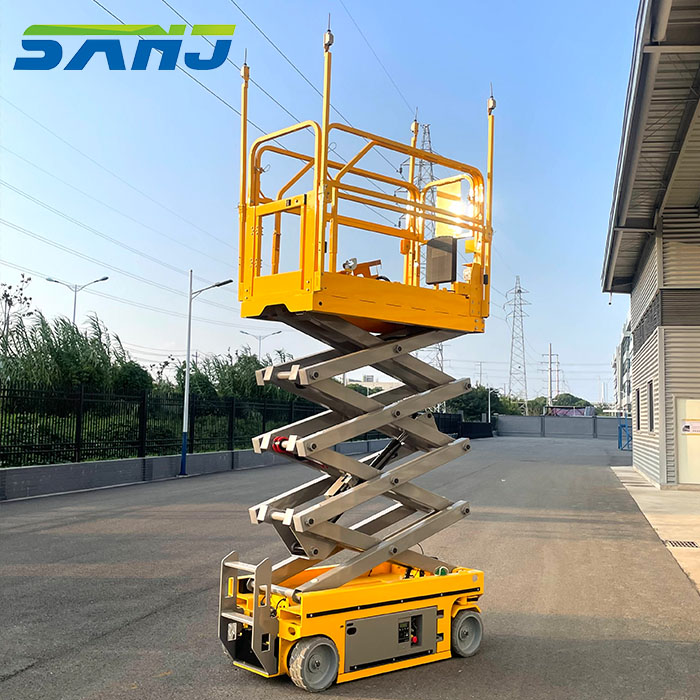

S0607 Wheel Hydraulic Scissor Lift 7.8m Working Height

S0607 wheel hydraulic scissor lift has a working height of 7.8 m and a lifting capacity of 230 kg. It complies with CE standards and has reliable quality. The platform length can be extended by 0.9 m, effectively expanding the working range.

Customizable colors: yellow, blue, green, red, orange, etc.

7.8m wheel hydraulic scissor lift is widely used in high-altitude maintenance, cleaning, equipment installation, decoration and other operations in buildings such as stations, docks, workshops, stadiums, hotels, warehouses, airports, etc.

Availability:
Quantity:
linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

Cost Effectiveness


  • Optimized design ,increases 20% more duty cycles with longer runtime.


  • Precision control for stable operation.


  • Large ground clearance (Pothole Protection retracted), great trafficability.



Easy Maintenance & service

  • Common components and modular design, easy to maintenance.


  • Bilateral swing-out trays (battery & hydraulich), simple to service.


  • Robust & build to last, reliable and safe.


Dimensions
A1    Max. Working Height7.8 m
A2    Max. Platform Height5.8 m
B       Overall Length (Stowed)1.88 m
C       Overall Width0.77 m
D       Overall Height (Guardrails unfolded)2.12m
Overall Height (Guardrails folded)1.65 m
E        Max Horizontal Reach (Extension)0.90 m
F        Platform Length (Stowed)1.65 m
G       Platform Width0.76 m
H       Wheelbase1.38 m
I         Ground Clearance (Stowed)0.06 m
J        Ground Clearance (Lifting)0.02 m
Weight
Overall Weight1600 kg
Performance
Max. Platform Occupancy (In door)2
Max. Platform Occupancy (Out door)0
Lift Capacity230 kg
Lift Capacity (Extension deck)120 kg
Driving HeightFull height
Driving speed (Stowed)0-3.2 km/h
Driving speed (Raised)0-0.8 km/h
Gradealility0.25
Turning Radius (Inside)0
Turning Radius (Outside)1.7 m
Maximum Working Inclination Angle2°/3°
Rise/Lower Speed23/28 sec.
Track Tyre305x100 mm
Power
Battery4x6V/200Ah
Charger90-240V/30A


WechatIMG56
