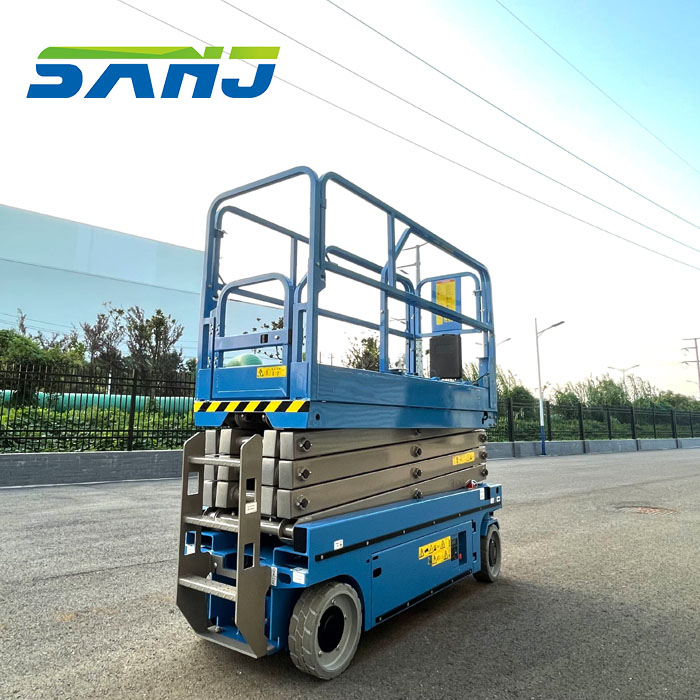

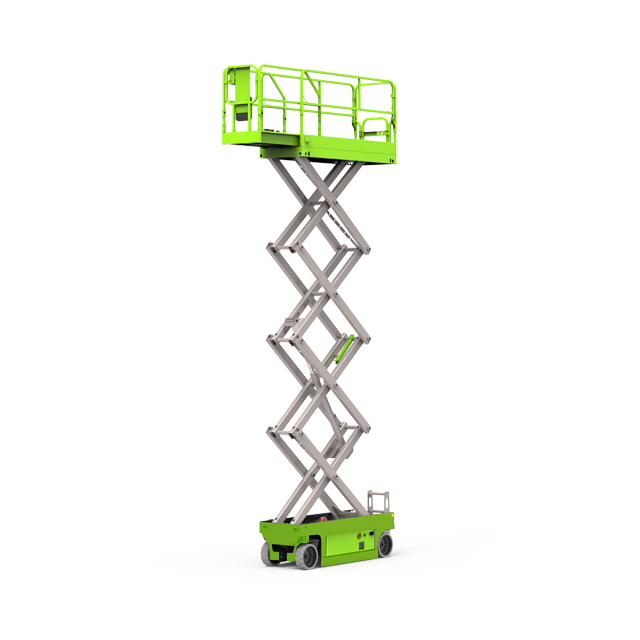

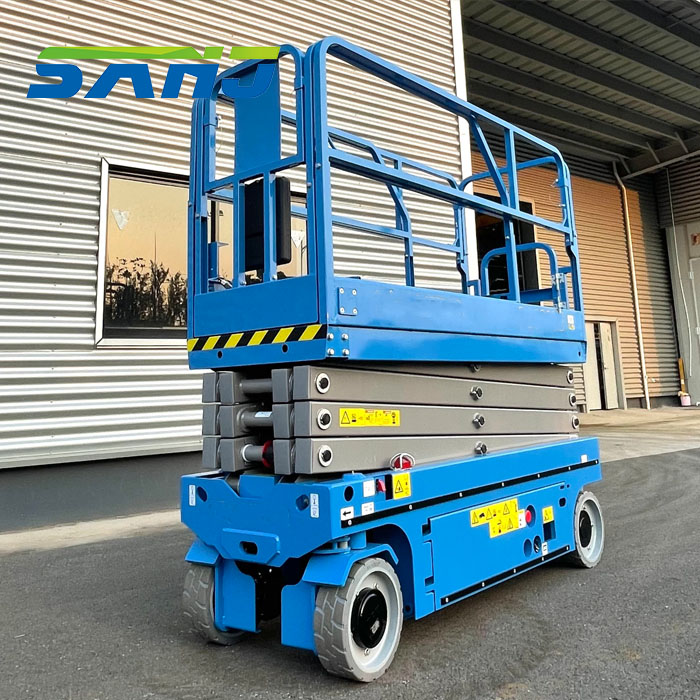

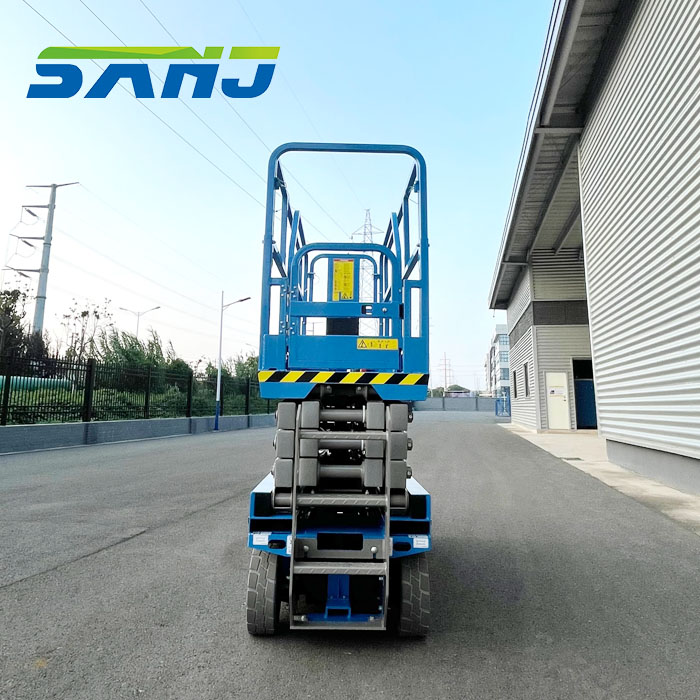

S0808E 9.8m Electric Wheel Scissor Lift Platform

S0808E 9.8m electric wheel scissor lift platform, lifting load 230kg, CE certified. The 9.8m electric wheel scissor lift has zero emissions, low noise, and can be used indoors and outdoors. It has a compact body and flexible wheel design, making it easy to pass through narrow areas. Multiple safety protection devices ensure safe operations. Including: pothole protection, emergency stop button, tilt protection system, folding safety guardrail, charging protection system, etc.

The S0808E 9.8m wheel scissor lift platform is suitable for small and medium-sized aerial operations such as shopping mall maintenance, factory inspection, warehouse shelf arrangement, etc., with outstanding cost performance.

Availability:
Quantity:
linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

High Performance


  • AC system offers higher working efficiency


  • IP67 rated waterproof protection on AC wheel motors for longer lifespan


  • Lithium-ion batteries features long service life that the running time increases b30%, and could apply to -20'℃ cold working conditions


Cost Effectiveness

  • Knuckles lubrication-free and maintenance-free


  • AC motor full lifecycle maintenance-free


  • Swing-out tray easy to service


  • Intelligent Connectivity


Battery Management System (BMS) + Machine control system provide dualprotection

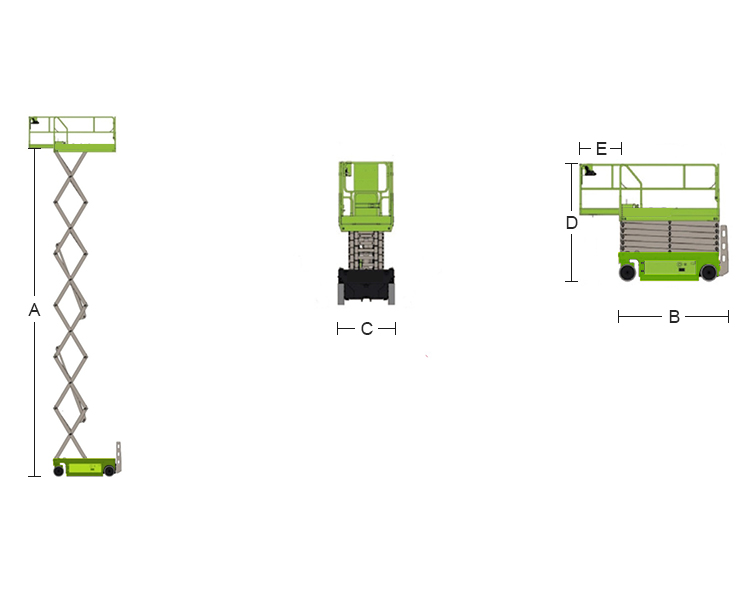

Dimensions
A1    Max. Working Height9.80 m
A2    Max. Platform Height7.80 m
B       Overall Length (Stowed)2.47 m
C       Overall Width0.84 m
D       Overall Height (Guardrails unfolded)2.31 m
Overall Height (Guardrails folded)1.83 m
E        Max Horizontal Reach (Extension)0.90 m
F        Platform Length (Stowed)2.25 m
G       Platform Width0.80 m
H       Wheelbase1.88 m
I         Ground Clearance (Stowed)0.06 m
J        Ground Clearance (Lifting)0.02 m
Weight
Overall Weight2220 kg
Performance
Max. Platform Occupancy (In door)2
Max. Platform Occupancy (Out door)1
Lift Capacity230 kg
Lift Capacity (Extension deck)120 kg
Driving HeightFull height
Driving speed (Stowed)0-3.0 km/h
Driving speed (Raised)0-0.8 km/h
Gradealility0.25
Turning Radius (Inside)0
Turning Radius (Outside)2.35 m
Maximum Working Inclination Angle2°/3°
Rise/Lower Speed28/30 sec.
Track Tyre381x127 mm
Power
Battery4x6V/240Ah
Charger90-240V/30A
