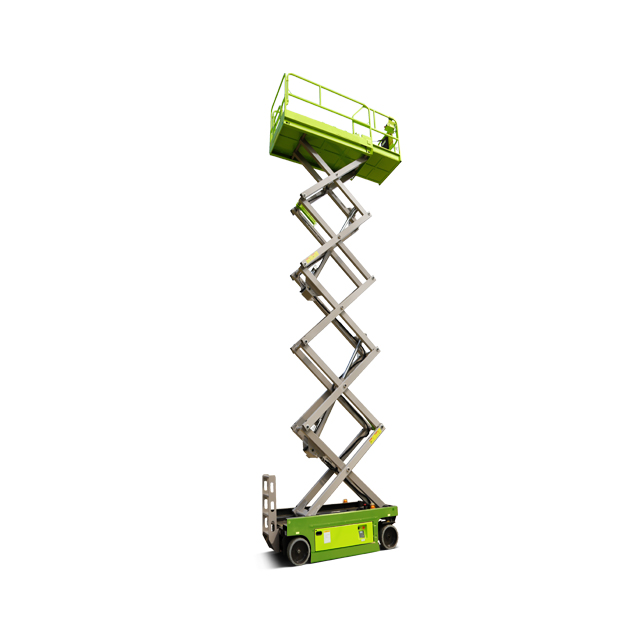

​S1012E 11.8m Electric Wheel Scissor Lift 320kg

The S1012E electric wheel scissor lift has a working height of 11.8m and a lift capacity of 320kg, meeting CE standards.
The 11.8m electric wheel scissor lift is easy to maintain. It eliminates hydraulic system issues, such as valve core jamming, oil leakage, oil changes, and reduced efficiency at high and low temperatures, significantly reducing maintenance costs. Its electric drive ensures silent operation and zero emissions, further complying with environmental regulations.

The S1012E 320kg electric wheel scissor lift is suitable for indoor and outdoor high-altitude operations, such as building exterior construction and repair, warehousing and cargo loading and unloading, factory equipment maintenance and repair, and exhibition stand construction.

Availability:
Quantity:
linkedin sharing button
facebook sharing button
twitter sharing button
whatsapp sharing button
sharethis sharing button

High Performance


  • AC system offers higher working efficiency


  • IP67 rated waterproof protection on AC wheel motors for longer lifespan


  • Lithium-ion batteries features long service life that the running time increases b30%, and could apply to -20'℃ cold working conditions


Cost Effectiveness

  • Knuckles lubrication-free and maintenance-free


  • AC motor full lifecycle maintenance-free


  • Swing-out tray easy to service


  • Intelligent Connectivity


Battery Management System (BMS) + Machine control system provide dualprotection


Dimensions
A1    Max. Working Height11.8 m
A2    Max. Platform Height9.80 m
B       Overall Length (Stowed)2.47 m
C       Overall Width1.20 m
D       Overall Height (Guardrails unfolded)2.44 m
Overall Height (Guardrails folded)1.92 m
E        Max Horizontal Reach (Extension)0.90 m
F        Platform Length (Stowed)2.25 m
G       Platform Width1.16 m
H       Wheelbase1.88 m
I         Ground Clearance (Stowed)0.10 m
J        Ground Clearance (Lifting)0.02 m
Weight
Overall Weight2580 kg
Performance
Max. Platform Occupancy (In door)2
Max. Platform Occupancy (Out door)1
Lift Capacity320 kg
Lift Capacity (Extension deck)120 kg
Driving HeightFull height
Driving speed (Stowed)0-3.0 km/h
Driving speed (Raised)0-0.8 km/h
Gradealility0.25
Turning Radius (Inside)0
Turning Radius (Outside)2.3 m
Maximum Working Inclination Angle1.5°/3°
Rise/Lower Speed58/48 sec.
Track Tyre381x127 mm
Power
Battery4x6V/240Ah
Charger90-240V/30A
